XP3 3HP single speed Massage Pump

Need help to install your parts?
Trust Boospa Services

AQUA-FLO
Ref : A-000000-0b755

XP3 3HP single speed Massage Pump

In Stock
900,00 €
755,59 £
Delivery Worldwide delivery
  • 100% compatible parts
    100% compatible parts

  • Warranty - 2 years
    Warranty - 2 years

Technical characteristics

XP3 3HP single speed massage pump
This Gecko pump is optimised for the biggest spas (like the swim spas) and / or with a lot of jets, which require a high performance and a high flow rate.
Gecko reference : 08240014-8

Characteristics
  • Single-Speed
  • 56 frames motor
  • 2.5 inches (74mm) provided with
  • Outlet / inlet thread in diameter : 94mm



Hz

V

A

Cos φ

min-¹

C

XP3 single speed 3HP

50

230-240

12.6 - 12.8

0,99

2840

65μf - 450V



Dimensions


Performance schema
Pipe Connection


Delivered with the 2,5" (73mm) output connection
You can use your old pump union connections. If these connectors aren't compatible with your pipe, click on the link below : Pump union connections

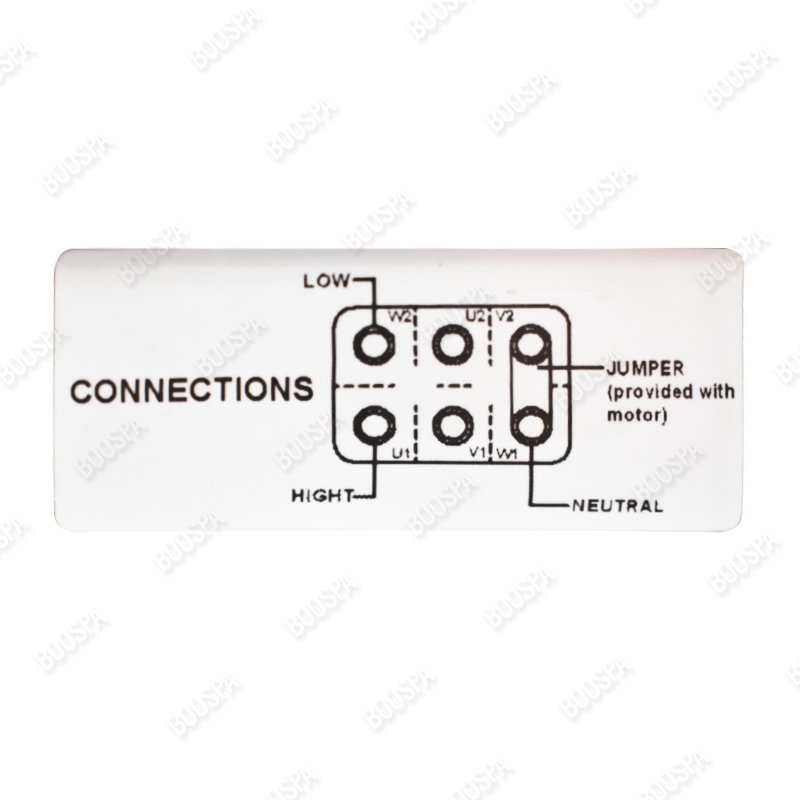

Electronic Connection


Delivered with cable with AMP plug. You can use your old cable to connect your new pump. If we can't connect it, choose your new cable in our cable range : Cables and plugs

The most famous plugs in Spa World:
prise ampprise J&J
 AMP Plug  J&J Plug
