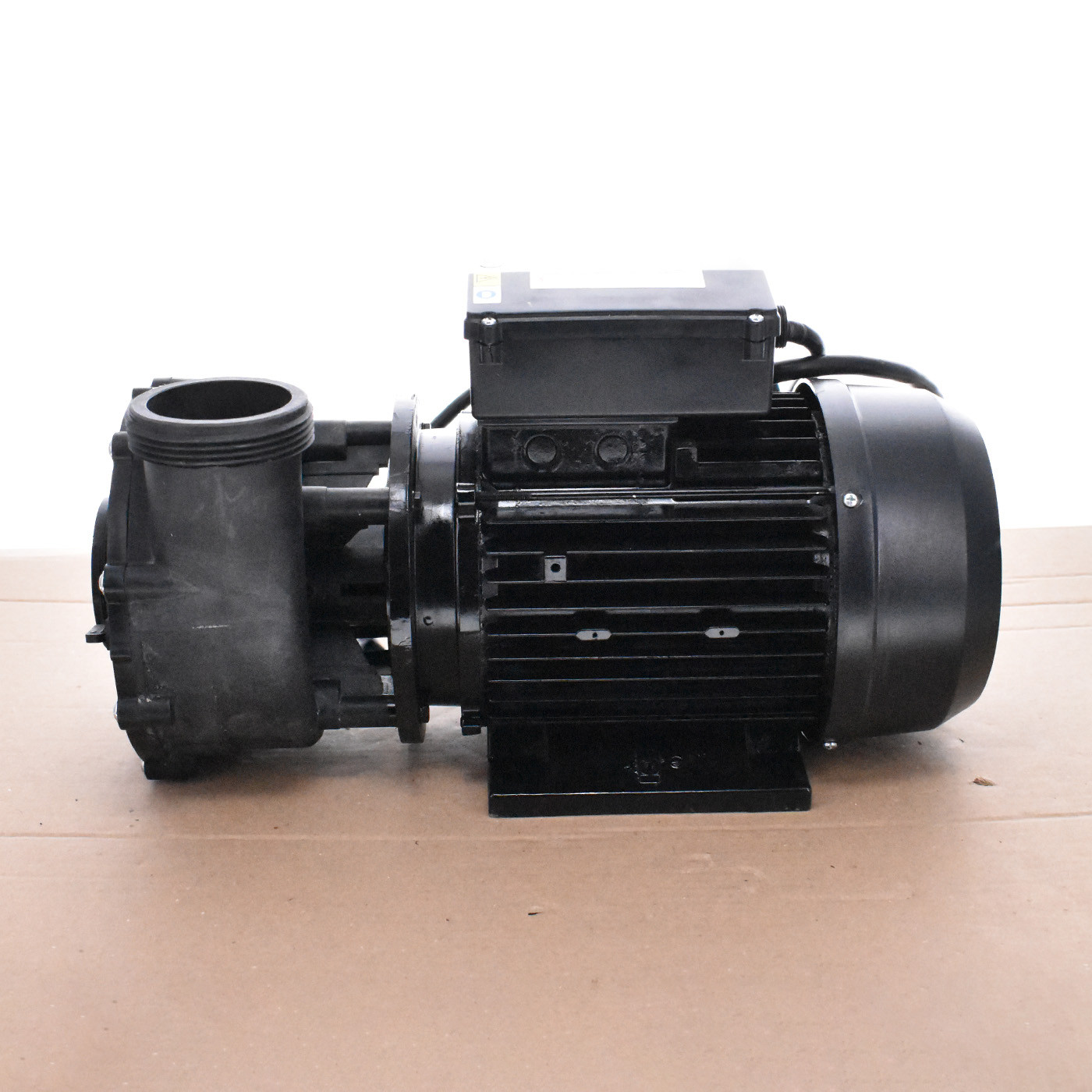

Mono-Speed Massage Pump LX WP300-I
Repainted, small dent on the fan cover, and various signs of wear.
Fittings not included.
The LX WP300-I pump is a single-speed massage pump model. Do not confuse this pump with the WP300-II, which is a dual-speed model.
Specifications:
- 3 HP (2.2 kW) - 240 Volts - 50 Hertz - 10 Amp
- Max flow rate: 730 L/min
- Hmax: 17 m
- Outer diameter for discharge/intake: 78 mm
- Motor cooling with IPX5 standard for progressive temperature rise
- Thermal overheating detector to preserve and extend motor lifespan
- Equipped with a 40µ/450 V capacitor
Dimensions:
Length: 431 mm
Pipe Connection
2 outlet fittings 63 mm (inner diameter) NOT included
You can reuse your old pipe fittings if they are still functional.
If your piping differs, check out our Fittings and Union range to find the fitting compatible with your piping.

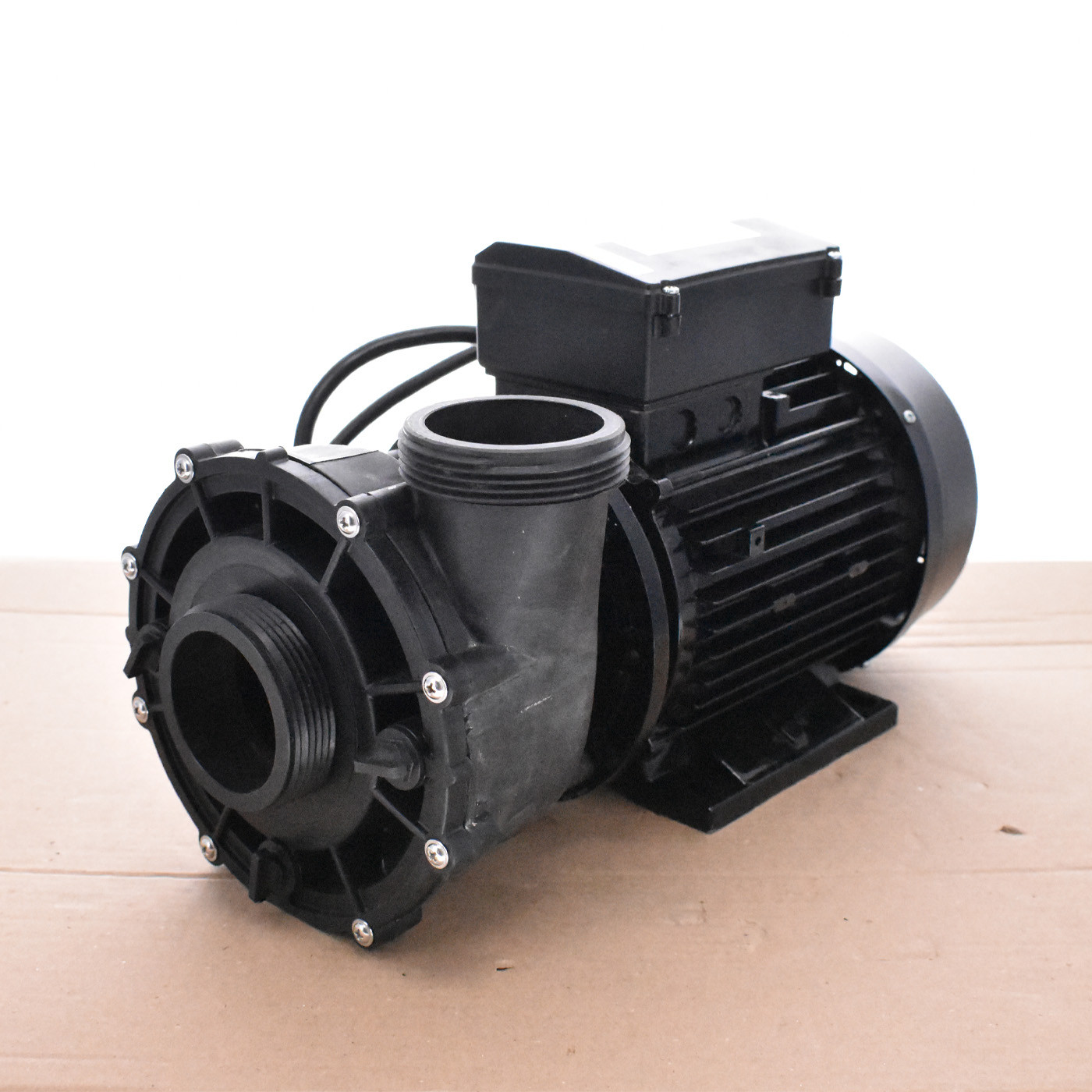

The pump body is adjustable to adapt to your piping. You can have the discharge positioned to the left or right depending on your setup. To do this, simply unscrew the 4 motor screws to rotate the pump body to the desired orientation. Then, reattach the screws in place.
Pipe Connection

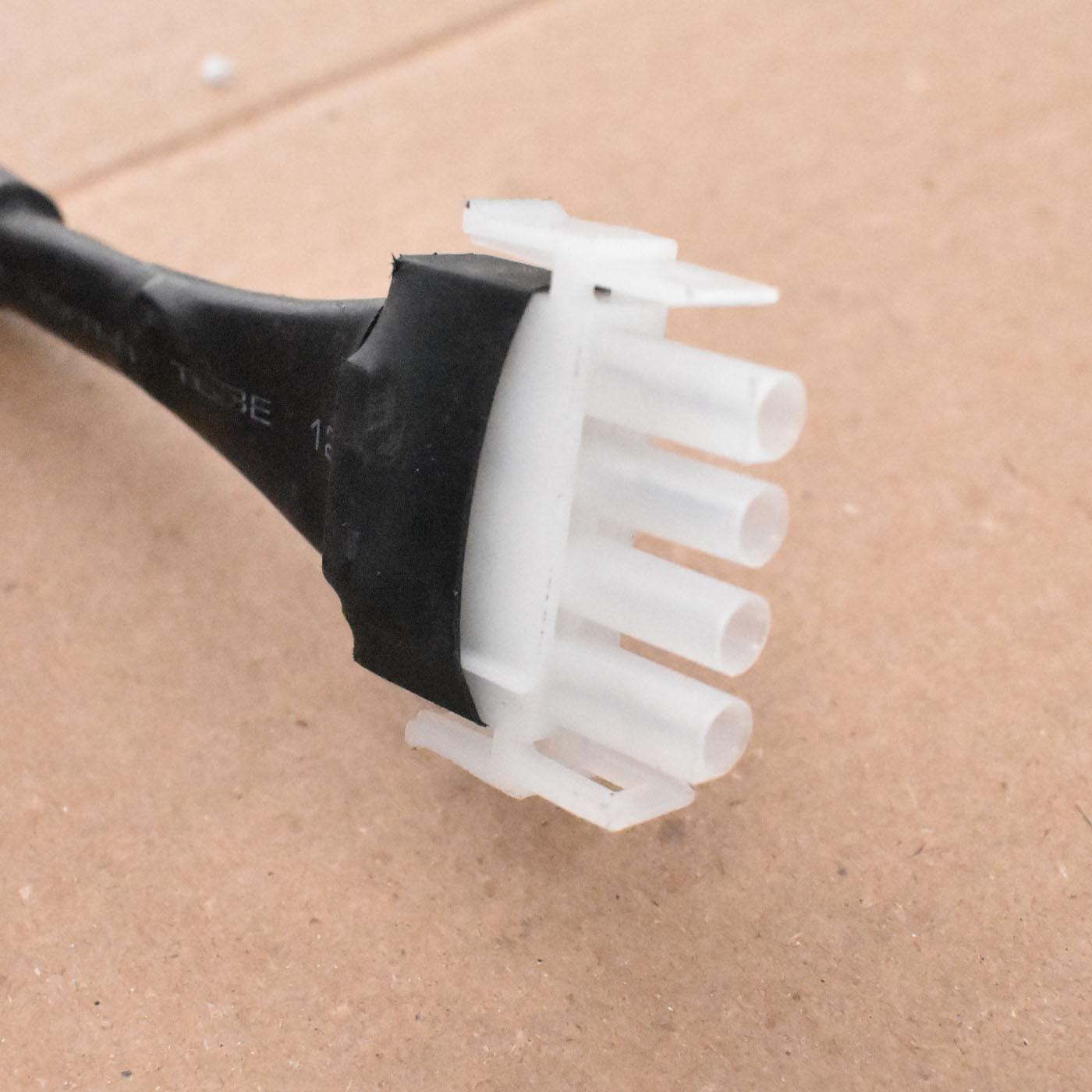

The pump comes with a cable without a connection plug. You can keep your old cable to connect this new pump. If your plug is no longer usable, you can opt for new plugs in our Cables and Plugs for Spa section.
