BALBOA INSTRUMENTS
Ref : A-000000-0n379

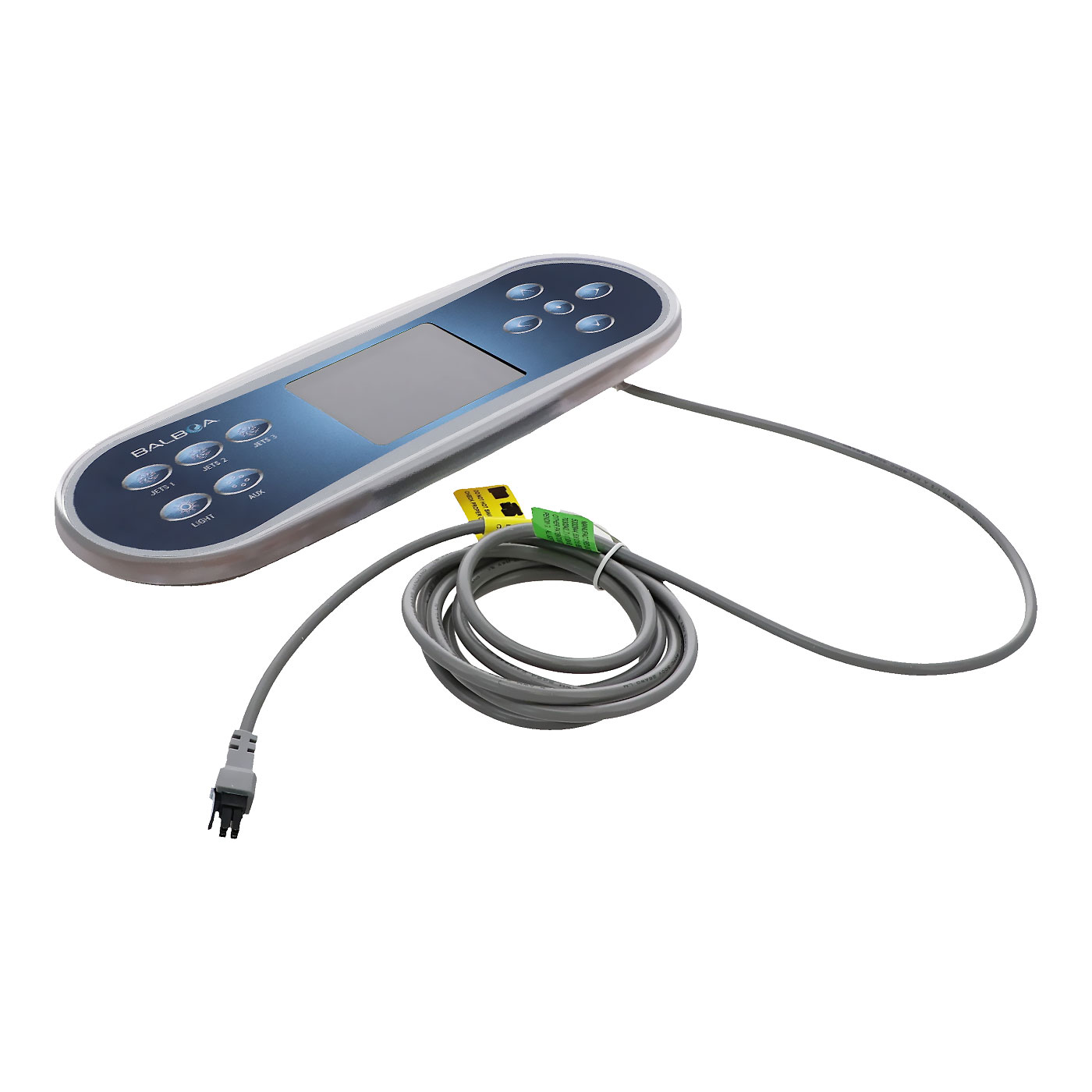

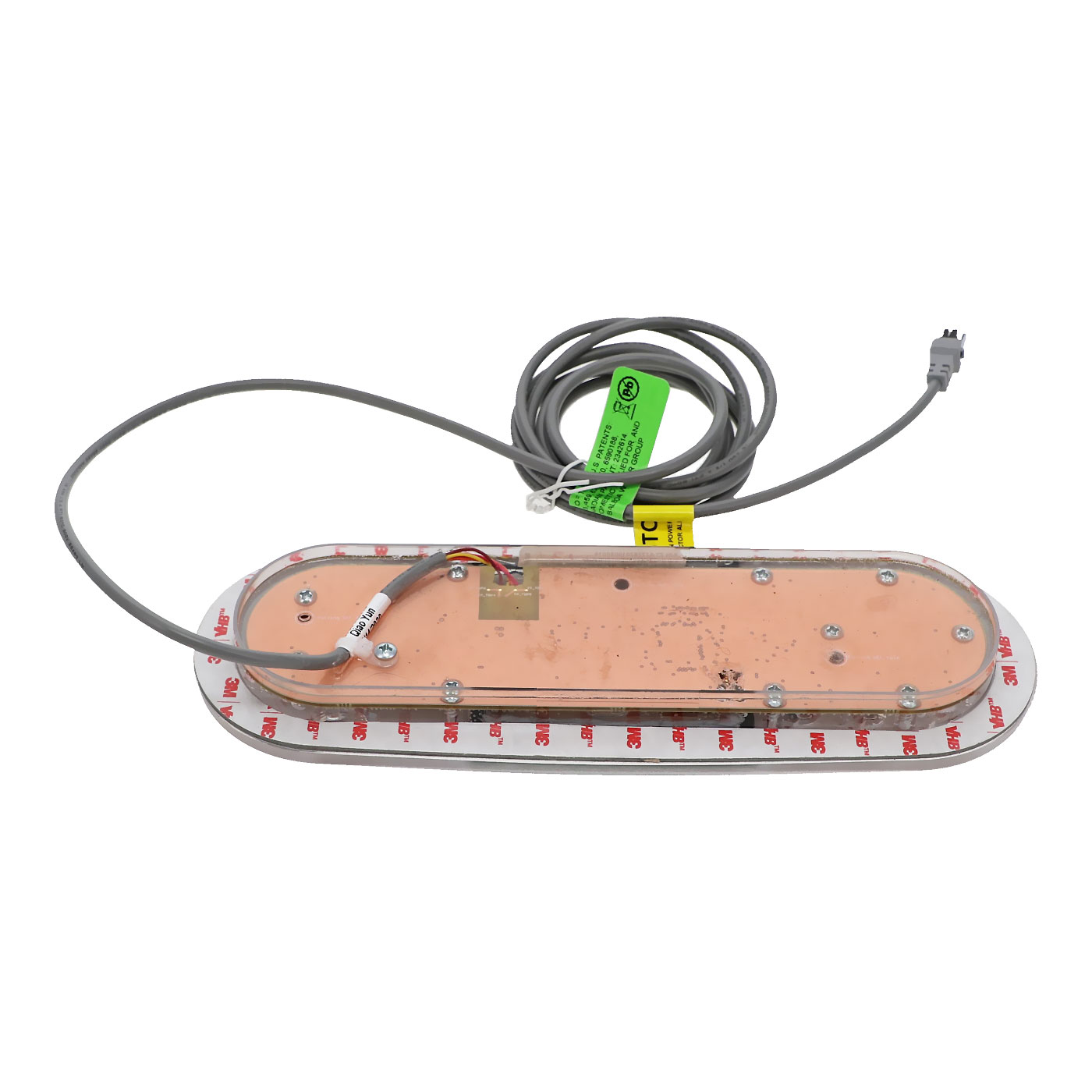

TP700 control panel with JETS3 overlay compatible with CLIM8ZONE

Balboa reference: 57280-03
Compatible with BP BALBOA control (version 7.0 or higher)
Allows control of up to 3 pumps
257,30 £
In Stock
  • Delivery

    Worldwide delivery

  • Delivery

    Pay in 4x free of charge with Read more

  • 100% compatible parts

    100% compatible parts

  • Warranty - 2 years

    Warranty - 2 years

Technical characteristics

TP700 control panel - 57280-03

This Balboa TP700 keypad comes with a overlay that features the JETS1 - JETS2 - JETS3 - LIGHT - AUX keys.
Control up to 3 pumps with this Balboa control panel.

Balboa reference of the TP700 with its "Jets 3" overlay : 57280-03
Balboa reference of the "Jets 3" overlay alone : ​​ 17381

This keyboard has 10 keys that allow you to :
  • Control the various spa devices such as pumps, lights and other auxiliary devices.
  • Navigate the menus and adjust the various functions available

Dimensions :

  • Screen dimensions : 65 x 50 mm
  • Keyboard dimensions : 254 x 88.9mm
  • Drilling area in the shell : 228.6 x 60 mm

balboa tp700 keyboard with jets3 key




Videos presenting the control panel features



Compatible with

  • Balboa BP control systems. (Version 7.0 or later versions)
  • And with CLIM8ZONE

Technical documentation

Equivalent products

10/10

Based on 1 reviews

Christian C.

Système très simple à installer et à utiliser. A noter l’absence de notice qui est nécessaire pour paramétrer le mode test
