Piping (page 7)

Manufacturer reference: 643-4250
Diameter: 90mm
O ring not included

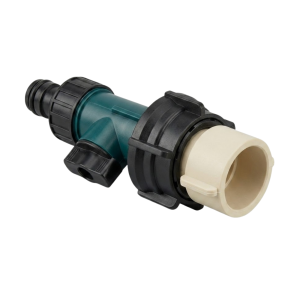

Draining valve 3/4'' (27mm) - External ring
Connection : Female
Pipe size : 3/4"" (27mm)
Opening and closing of the flow by security ring.

Waterway reference : 600-8160

Connection type : female
Pipe diameter : 1 x 1" (33mm) and 2 x 2" (60mm)

1’’ diameter (33.5 mm internal) (spa piping)

2.5’’ Male/Female rounded 90° Elbow
Fitting : Male / Female
Direction : 90°
Pipe size : 2.5" (74 mm)

Manifold 1.5'' M/F - 4 ports 3/4'' F
In white ABS

Drain valve for 1.5 "air piping
Additional safety against water infiltration towards the blower
Usually positioned at the bottom of a T-fitting

2’’ M/F Manifold two ports 3/8’’ or ¾’’
Waterway reference 672-4910
In high quality ABS
