BALBOA INSTRUMENTS
Ref : A-000000-03405

Retrofit kit VL701S + GS501SZ

622,50 £
In Stock
  • Delivery

    Worldwide delivery

  • Delivery

    Pay in 4x free of charge with Read more

  • 100% compatible parts

    100% compatible parts

  • Warranty - 2 years

    Warranty - 2 years

Technical characteristics

Perfect to replace your old electronic spa system, included all of spare parts to restore your spa. You can restore your spa with these retrofit kits.

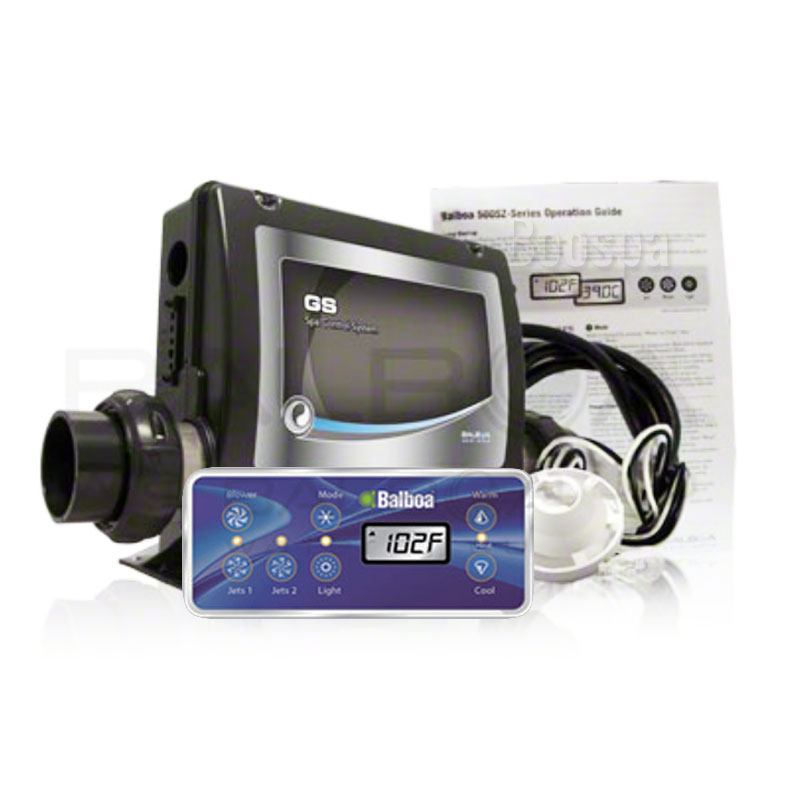

Retrofit kit VL701S + GS501SZ
Heater BALBOA 3.0 kW 240V
With M7 sensors
Balboa Reference : 54815

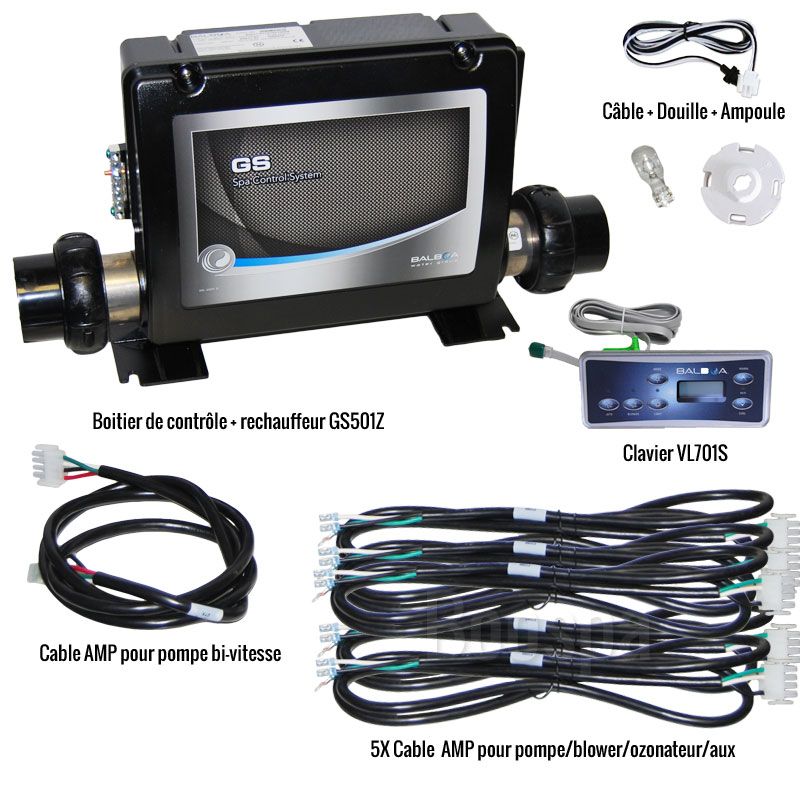

Included :
  • GS501DZ Control Box + Heater 3kW M7
  • Panel VL701S
  • 5 AMP cable for 1-speed pump / Blower / Aux / Ozone
  • 1 AMP cable for 2 speed pump
  • 1 BALBOA Light

Can control :

  • 1 circ pump
  • 1 2-speed pump
  • 1 blower  or 1-speed pump
  • 1 support balboa ozone
  • 1 heater Balboa 3Kw M7
  • 1 Aux 220/240V


The M7 (Millenium 7) control system is a patented technology by Balboa. Sensors placed inside the heater allow to continuously and correctly measure the flow and the water temperature. The systems using this technology have a superior lifespan and are more liable.
The sensors’ cables are sold separately.

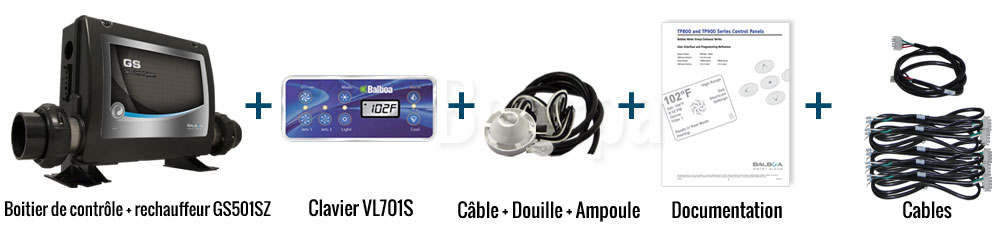

Retrofit Kit VL701S + GS501SZ Schema

Clavier Vl701s
Embedding panel
  • Length : 160mm
  • Width : 56mm

Pipe Connection


Delivered with the 2" (60 mm internal) output connection
You can use your old union connections. If these connectors aren't compatible with your pipe, click on the link below : Heater union connections

Compatible with


All spas with power supply : 220 - 240V
