Retrofit kit VL200 + GS500Z

Need help to install your parts?
Trust Boospa Services

BALBOA INSTRUMENTS
Ref : A-000000-0a103

Retrofit kit VL200 + GS500Z

Available on order
649,00 €
544,86 £
Delivery Worldwide delivery
  • 100% compatible parts
    100% compatible parts

  • Warranty - 2 years
    Warranty - 2 years

Technical characteristics

Perfect to replace your old electronic spa system, included all of spare parts to restore your spa. You can restore your spa with these retrofit kits.

Retrofit kit VL200 + GS500Z
Heater BALBOA 3.0 kW 240V
With M7 sensors

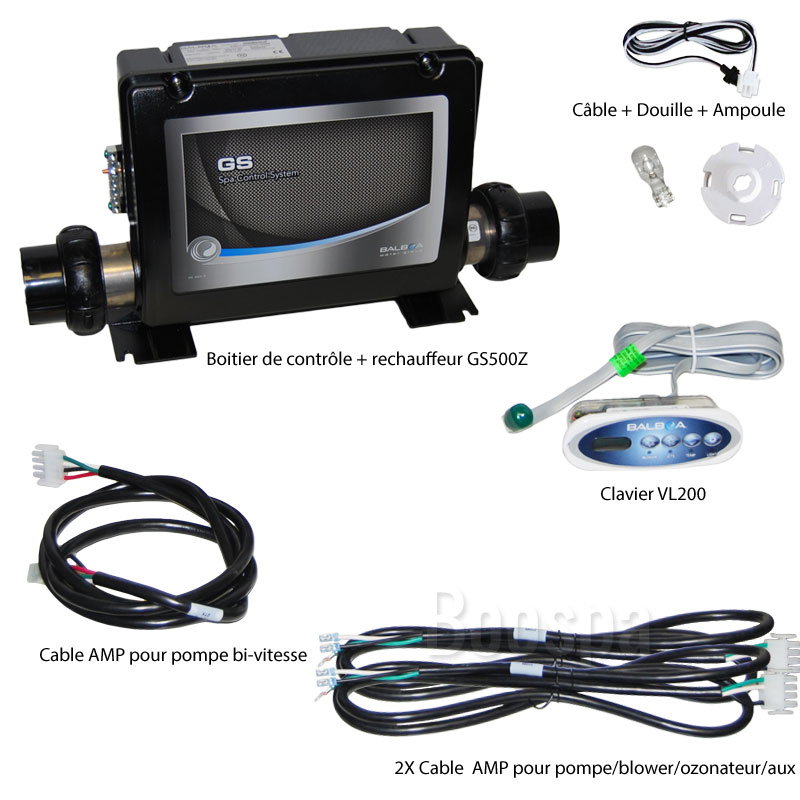

Included :
  • GS500Z Control Box + Heater 3kW M7
  • Panel VL200
  • 3 AMP cable for 1-speed pump / Blower / Aux / Ozone
  • 1 AMP cable for 2 speed pump
  • 1 BALBOA Light

Can control :

  • 1 circ pump
  • 1 2-speed pump
  • 1 support balboa ozone
  • 1 heater Balboa 3Kw M7
  • 1 Aux 220/240V


The M7 (Millenium 7) control system is a patented technology by Balboa. Sensors placed inside the heater allow to continuously and correctly measure the flow and the water temperature. The systems using this technology have a superior lifespan and are more liable.
The sensors’ cables are sold separately.



Retrofit Kit VL200 Schema

Clavier Vl200
Embedding panel
  • Length : 95mm
  • Width : 24mm

Pipe Connection


Delivered with the 2" (60 mm internal) output connection
You can use your old union connections. If these connectors aren't compatible with your pipe, click on the link below : Heater union connections

Compatible with


All spas with power supply : 220 - 240V

Technical documentation

Equivalent products
