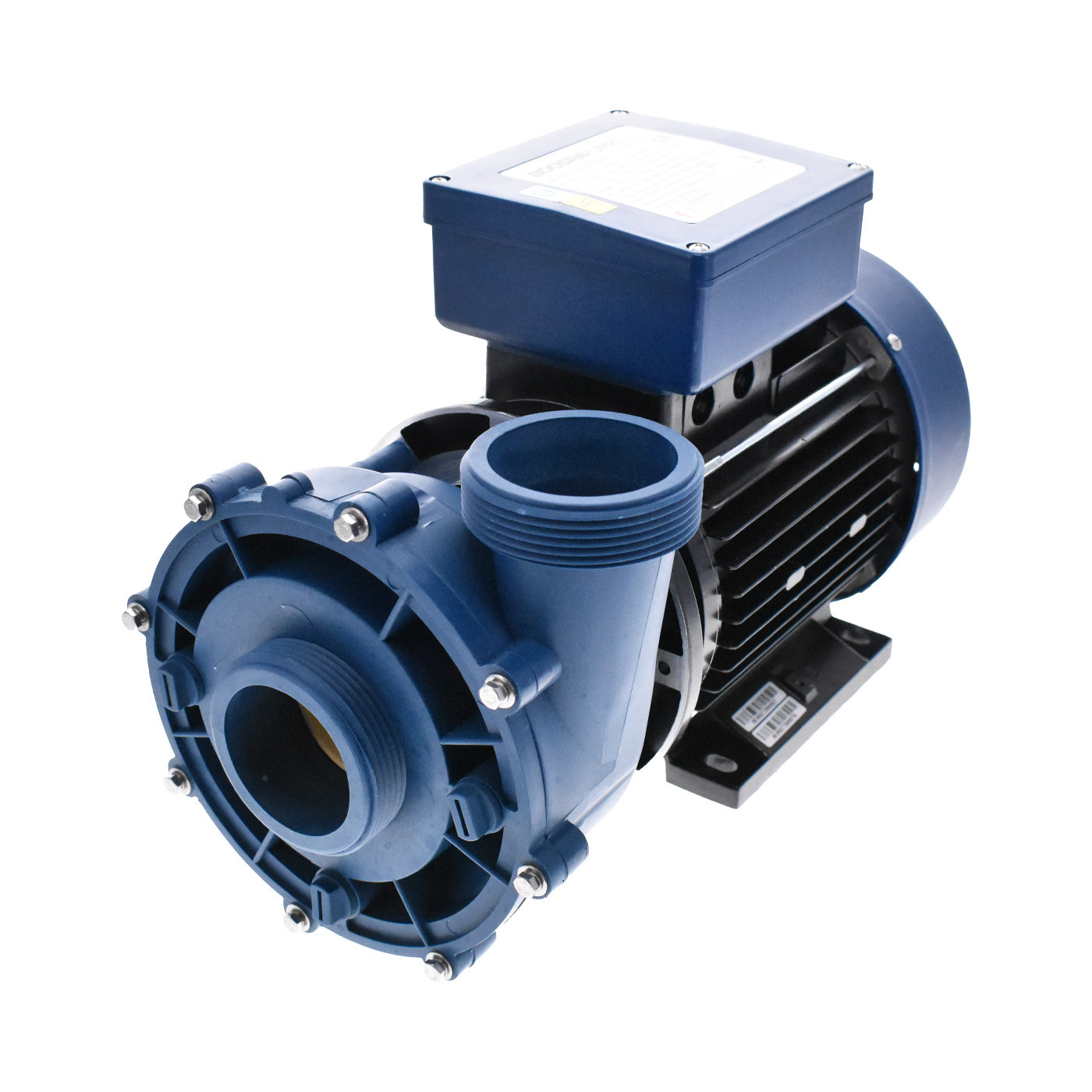

Exclusively compatible with Waterway spas Direct replacement for the Executive Euro dual-speed 3.2HP pump 3.0HP - 2200 watts - 730 liters/min - Dual-Speed Includes 2 fittings for 2" (60mm) external diameter piping External thread diameter (Suction - Discharge): 78 mm Pump with AMP plug Direct replacement for the massage pump WP300II - LX
Direct replacement for the massage pump WP300II - LX
Aluminum motor frame - MEC90
Central suction (external thread diameter: 78mm)
Side discharge (external thread diameter: 78mm)
IPX5 protection
Reduced vibration (includes 4 silent blocks)
High-quality mechanical seal, highly resistant to spa chemicals
Do not exceed an external temperature of 50°C
This pump can also be used as a filtration pump due to its dual-speed functionality
Technical Diagrams
Specifications of all HDP series pumps:
Model
Power
V/Hz
Qmax (L/min)
Hmax (m)
Pipe Outer Diameter
Pump Weight
Packaging Dimensions
HDP1500
1500W/2.0HP
220-240V/50Hz
640
13
60mm (2 inches)
13
440 x 225 x 260.5
HDP1800
1800W/2.5HP
220-240V/50Hz
700
14.5
60mm (2 inches)
14.5
440 x 225 x 260.5
HDP2200
2200W/3.0HP
220-240V/50Hz
800
16
60mm (2 inches)
15.5
440 x 225 x 260.5
HDP3000
3000W/4.0HP
220-240V/50Hz
900
18
60mm (2 inches)
18
440 x 225 x 260.5
HDP1500II
1500W/2.0HP 250W/0.35HP
220-240V/50Hz
640 310
13 3
60mm (2 inches)
13.8
440 x 225 x 260.5
HDP1800II
1800W/2.5HP 300W/0.4HP
220-240V/50Hz
700 350
14.5 4
60mm (2 inches)
15.3
440 x 225 x 260.5

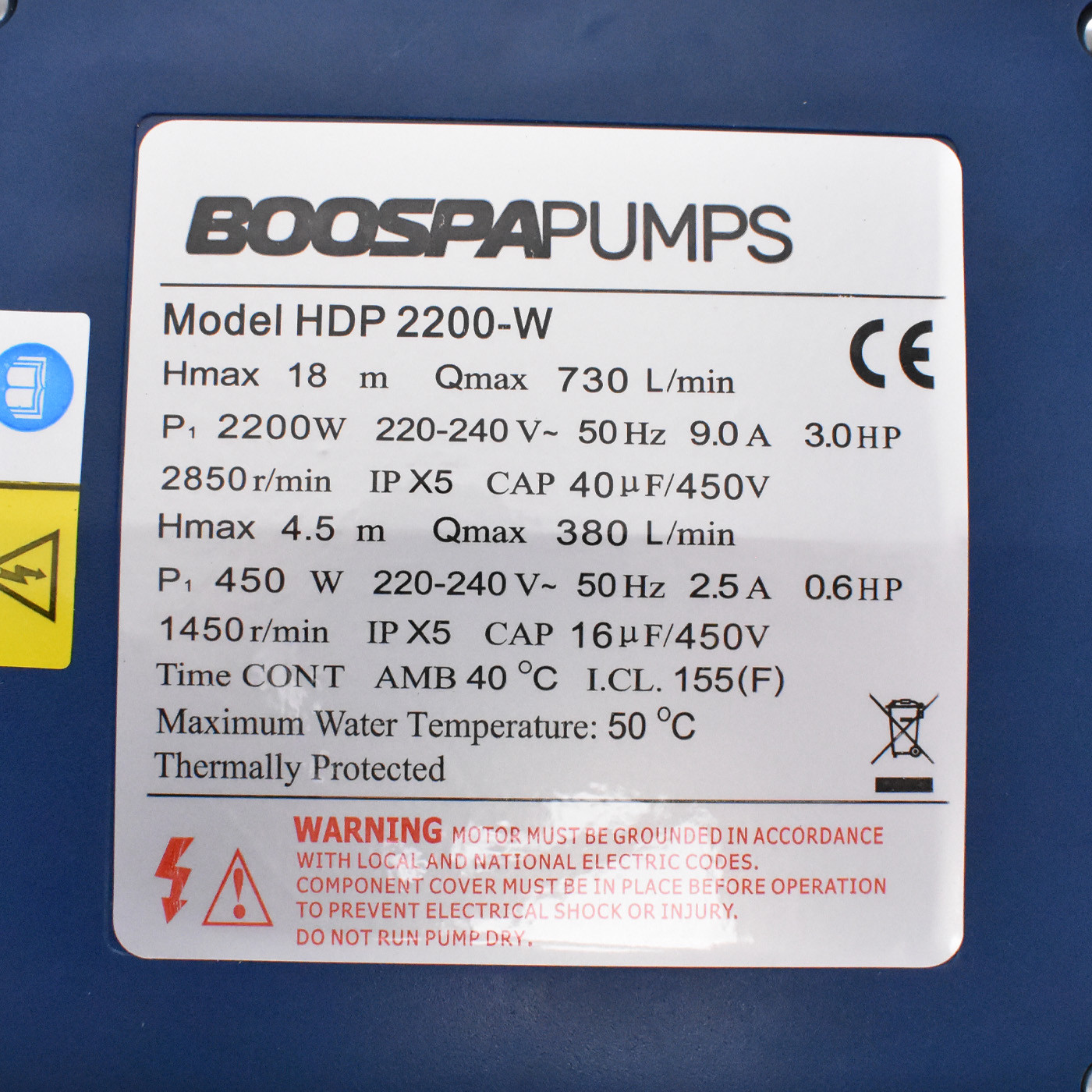

HDP2200II
2200W/3.0HP 450W/0.6HP
220-240V/50Hz
730 380
18 4.5
60mm (2 inches)
16.3
440 x 225 x 260.5
HDP2200JII
2200W/3.0HP 450W/0.6HP
220-240V/50Hz
730 380
18 4.5
60mm (2 inches)
16.3
440 x 225 x 260.5
HDP2200WII
2200W/3.0HP 450W/0.6HP
220-240V/50Hz
730 380
18 4.5
60mm (2 inches)
16.3
440 x 225 x 260.5
Plumbing Connection
Includes 2 fittings for 2" (60mm external diameter) pipes You can also reuse your existing plumbing fittings if they are still functional. If your plumbing differs, check our Fittings and Union section to find the right connection for your setup.
The pump body is adjustable to match your plumbing. You can position the discharge on the left or right according to your installation. Simply unscrew the four motor screws to rotate the pump body to the desired direction, then reattach the screws.
Electrical Connection

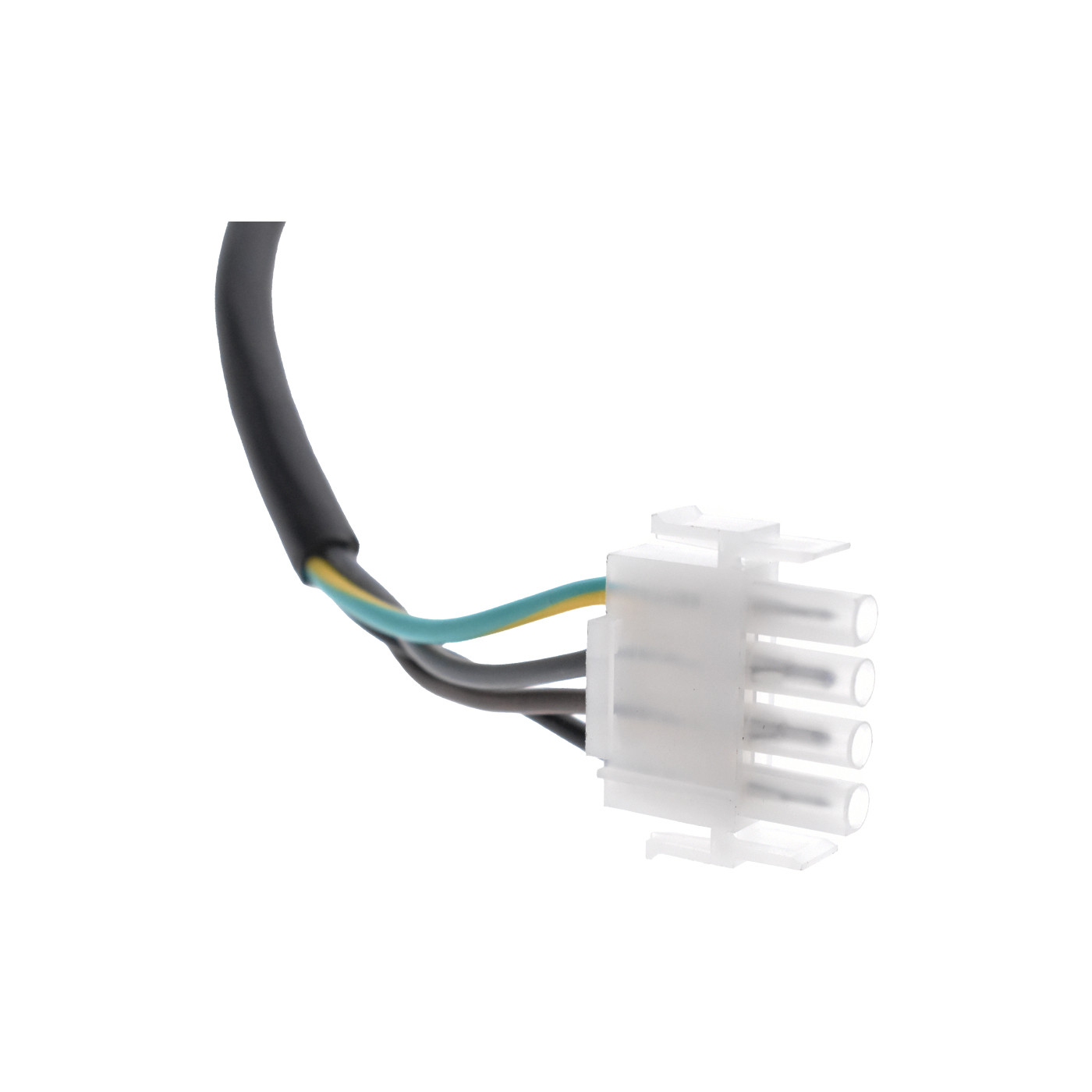

The pump comes with a connection cable and AMP plug. You can reuse your existing cable to connect this new pump. If your plug is no longer usable, you can purchase a new one in our Cables and Plugs for Spa section.
Here are the most commonly used plugs in the spa industry:
AMP Plug
J&J Plug (PIN positions vary depending on the device)
