Ref : A-000000-0o376

Ozone generator GH-UVC-1001 - BOOSPAZONE

Energy consumption: 30W
Ozone output: 80 mg/h
Water treatment capacity: 15L/min
AMP plug included
In Stock
320,00 €
266,67 £
Delivery Worldwide delivery
  • 100% compatible parts
    100% compatible parts

  • Warranty - 2 years
    Warranty - 2 years

Technical characteristics

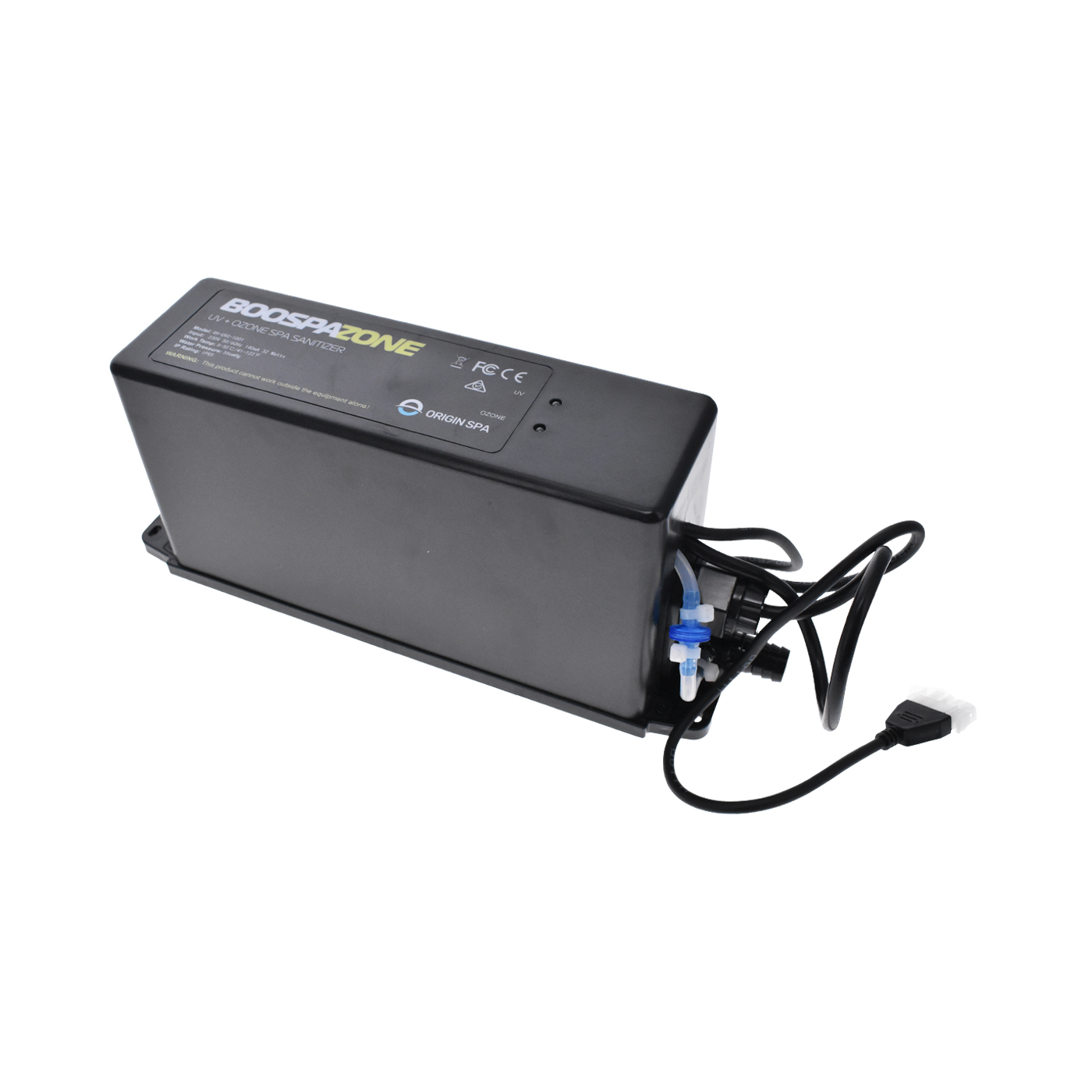

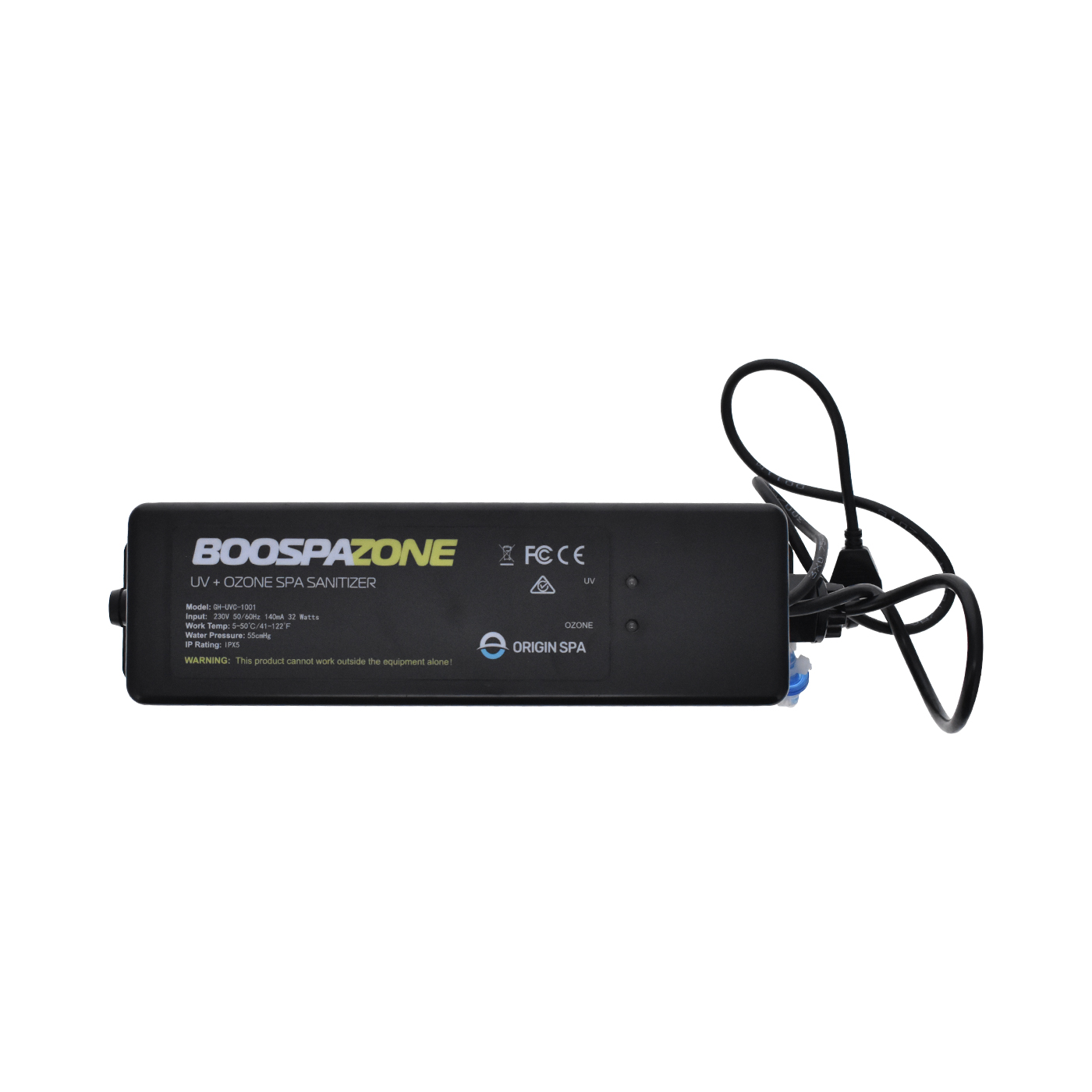

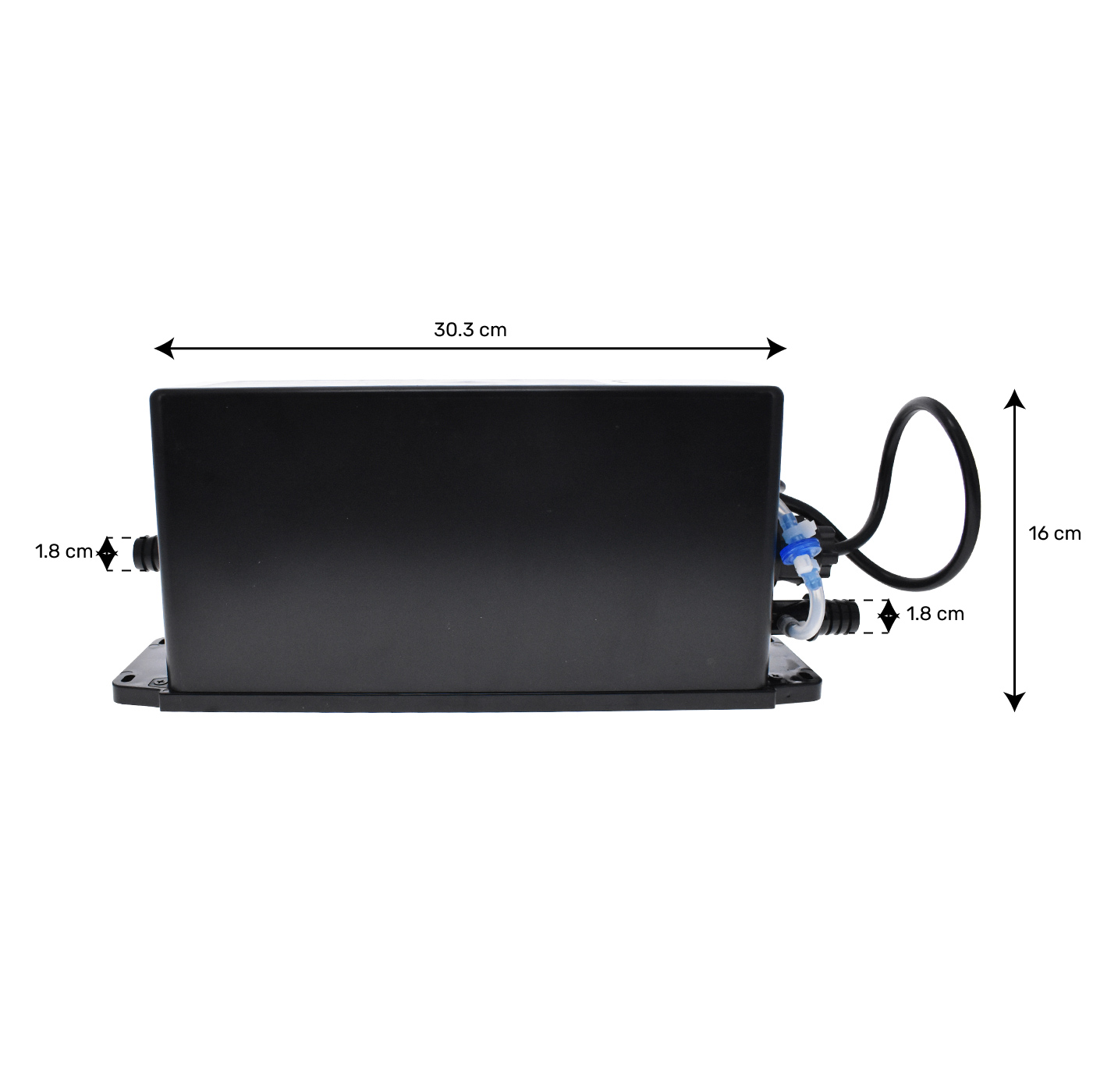

Ozonator + UV - BOOSPAZONE - GH-UVC-1001

The GH-UVC-1001 model is an ozonator and UV sterilizer designed for the disinfection of spa and pool water. It uses a combination of UV and ozone technologies to eliminate bacteria, impurities, and inhibit algae growth. This device is intended to complement spa water cleaning products, ensuring optimal disinfection while minimizing chemical impact.

Technical Specifications:

  • Power supply: 220-240V AC, 50-60Hz
  • Operating current: 140mA
  • Nominal power: 26W
  • Energy consumption: 30W
  • Operating temperature: 5-50°C
  • Water pressure: 55 cmHg
  • Protection rating: IPX5
  • Plug: AMP plug included
UV Lamp:
  • Type: T5, power 16W
  • Length: 287 mm, diameter: 15 mm
  • Effective lifespan: 5000 hours
Quartz Glass Sleeve:
  • Length: 296 mm, diameter: 25 mm
Ozone Production:
  • Amplification voltage: 3-4KV, frequency: 13-18KHz
  • Ozone output: 80 mg/h
  • Water treatment capacity: 15L/min
Usage and Installation:
  • Installation: The product must be installed on a horizontal surface. Connect the inlet and outlet water pipes according to the instructions, ensuring the connections are sealed.
  • Operation: The UV and ozone indicators light up when the device is operating normally. If the indicators turn off or blink, it indicates a malfunction.
  • UV Lamp Replacement: In case of damage, a qualified technician should remove and replace the UV lamp according to specific instructions to avoid any damage.
