KL8-3 Electronic Control Box

Need help to install your parts?
Trust Boospa Services

ETHINK
Ref : A-000000-01382

KL8-3 Electronic Control Box

In Stock
499,00 €
418,93 £
Delivery Worldwide delivery
  • 100% compatible parts
    100% compatible parts

  • Warranty - 2 years
    Warranty - 2 years

Technical characteristics

Logo Ethink KL8-3 UK

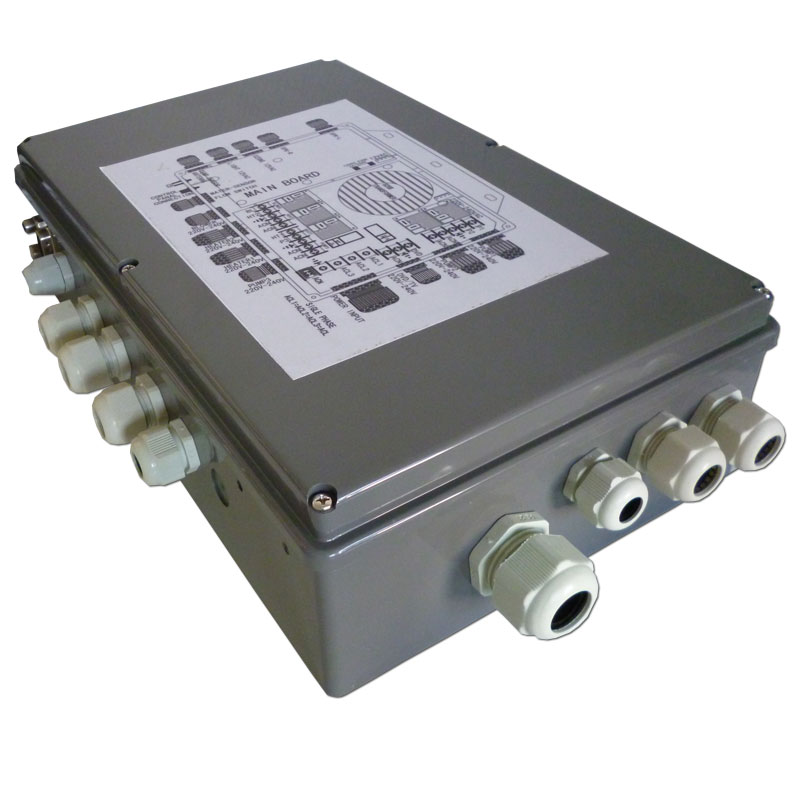

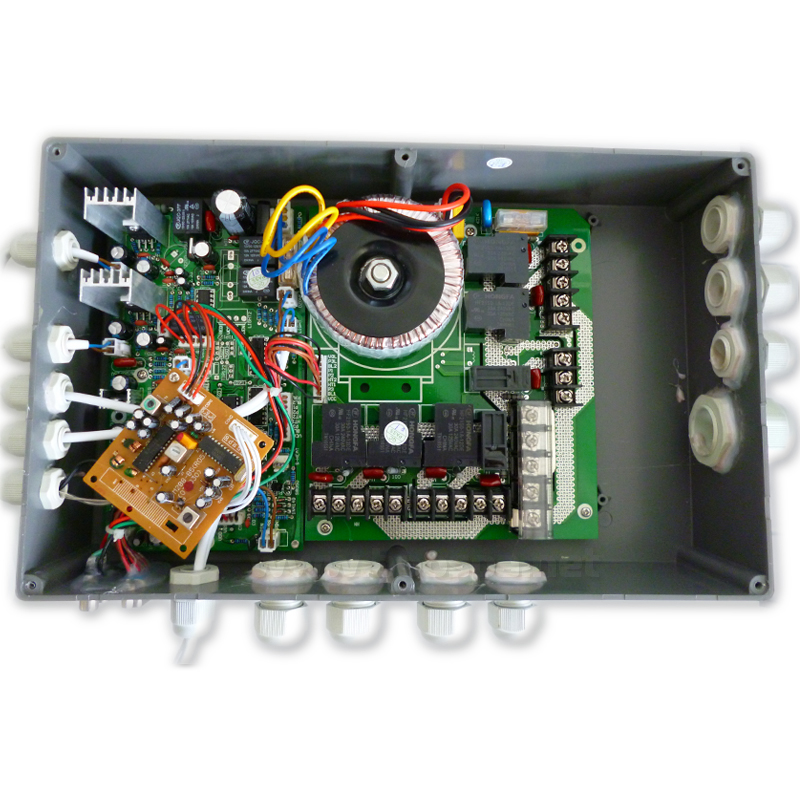

KL8-3 electronic box.

For up to 4 massage pumps according to the model.

Replaced by the KL8300 model

ETHINK KL8-3 CONTROL BOX (6 models: 2, 3 or 4 massage pumps with or without the Jazzi LED connection)


Electric: 220-240 Volts Norms N-CE-CB
Circulation pump: 1 pump 220-240V
Massage pump:2, 3 or 4 pumps 220-240V
Blower 1 Blower 220-240V
Memory clock: YES
LED lighting:Standard / Jazzi / Round
LED lighting control: YES
Heater connection: 1 heater 3Kw 220V
Stereo Radio / CD: YES
Temperature sensor: YES
Water level probe: YES


Dimensions:
Length: 29 cm
Width: 21 cm
Depth: 10 cm



LED LIGHTING CONNECTION


Standard connection ETHINK Round connection
connexion universelle Connexion standard

Jazzi connection
econnexion JAZZI




ETHINK KL8-3 CONTROL PANEL


Control Panel (w/ display backlight)

Tableau de commande KL3-2


    • 3 modes: standard mode, power saving mode and sleep mode.
    • 24H clock display fully adjustable for setting cleaning cycles.
    • Control and display water temperature
    • Controls up to 4 massage pumps, one circulation pump and an air pump (blower)
    • Management of LEDs and colors
    • Temperature displayed in Fahrenheit or Celsius
    • Anti-frost mode
    • Buttons w/ backlight
    • 220/240V
    • Low voltage for lighting and ozonator
    • Switch for mode adjustment
    • Error messages for a fast problem identification

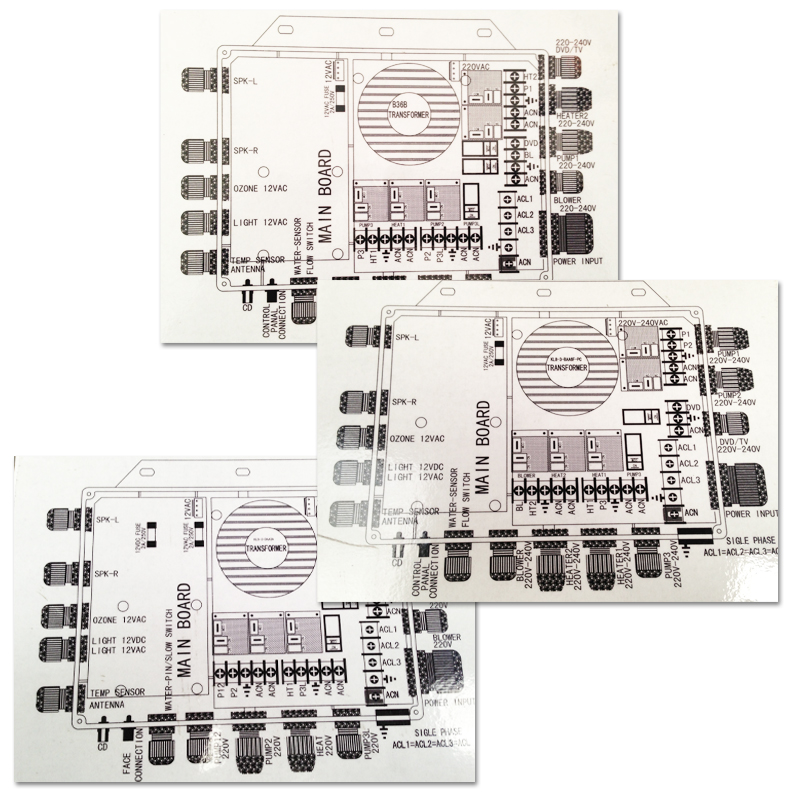

    In order to find the reference corresponding to your control box, here are the different manufacturer references present on the cards processor or directly on the control box itself.

    KL8-3 ( 2 massage pumps )KL8-3-BAA6G-PC
    KL8-3 ( 3 massage pumps )KL8-3-CAA6G-PC
    KL8-3 ( 4 massage pumps )KL8-3-DAA3A



    Compatible with


    Aquazzi - Blue Lagoon spas - Jazzi spas - JFC bien être - JnJ spas - Phybris spas ... and many other Chinese made spas equipped with a KL8 series control box

    Equivalent products

    9.2/10

    Based on 21 reviews

    Vincent E.

    Très bien

    Gilles P.

    Conforme a mes attentes

    Anonymous A.

    Boitier compatible mais avec des branchements modifiés par rapport au boitier d'origine. Un peu technique mais l'assistance est très patiente et au top

    Anonymous A.

    KL8-3- remplacé par KL8300. Différent mais compatible avec une modif de réglage indiquée par le SAV

    Anonymous A.

    Riktig produkt

    Anonymous A.

    très bon produit, conforme au descriptif

    Anonymous A.

    Pas de notice d'installation, les commandes de programmation ne sont plus les mêmes et pour faire fonctionner le preheat il faut faire un pont. Sinon tout marche

    Anonymous A.

    Une notice sur le fonctionnement du tableau de commande avec le nouveau boîtier serait un plus

    Anonymous A.

    PARFAIT PRIX TRÈS BIEN

    Anonymous A.

    Produit conforme à sa description et à ceux prévu. Très satisfaite de mon achat.
