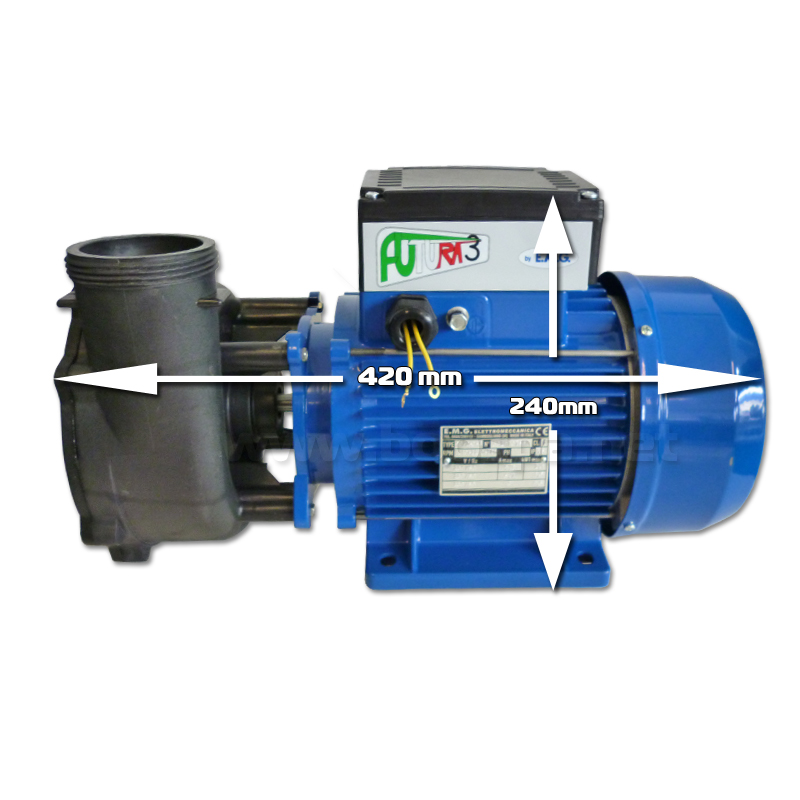

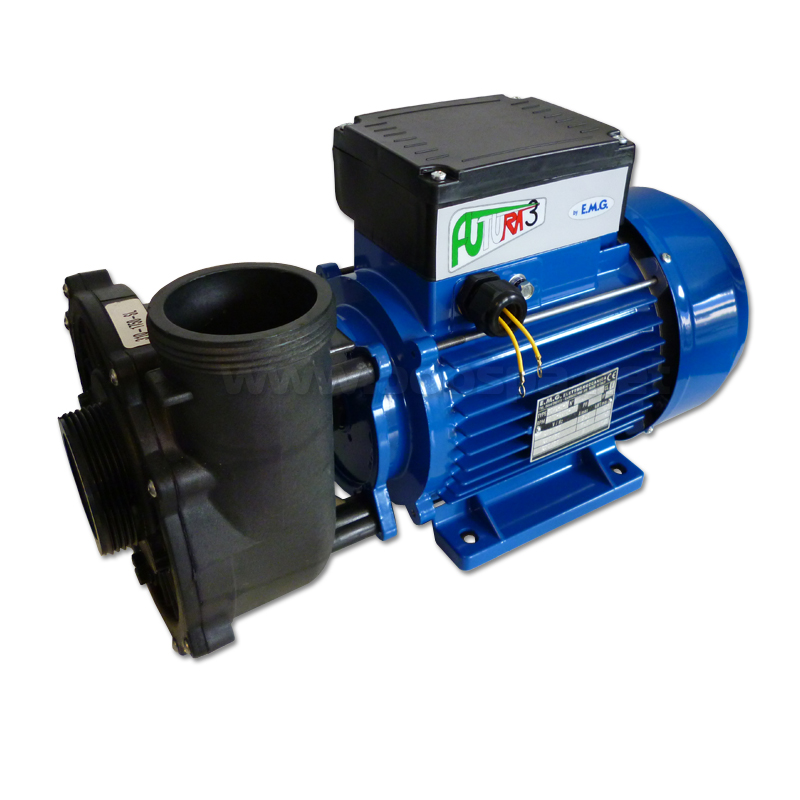

Futura 3 Massage Pump

572,70 £
In Stock
  • Delivery

    Worldwide delivery

  • Delivery

    Pay in 4x free of charge with Read more

  • 100% compatible parts

    100% compatible parts

  • Warranty - 2 years

    Warranty - 2 years

Technical characteristics

WATERWAY Futura 3 pump
Massage pump for 5HP spa
3 speeds

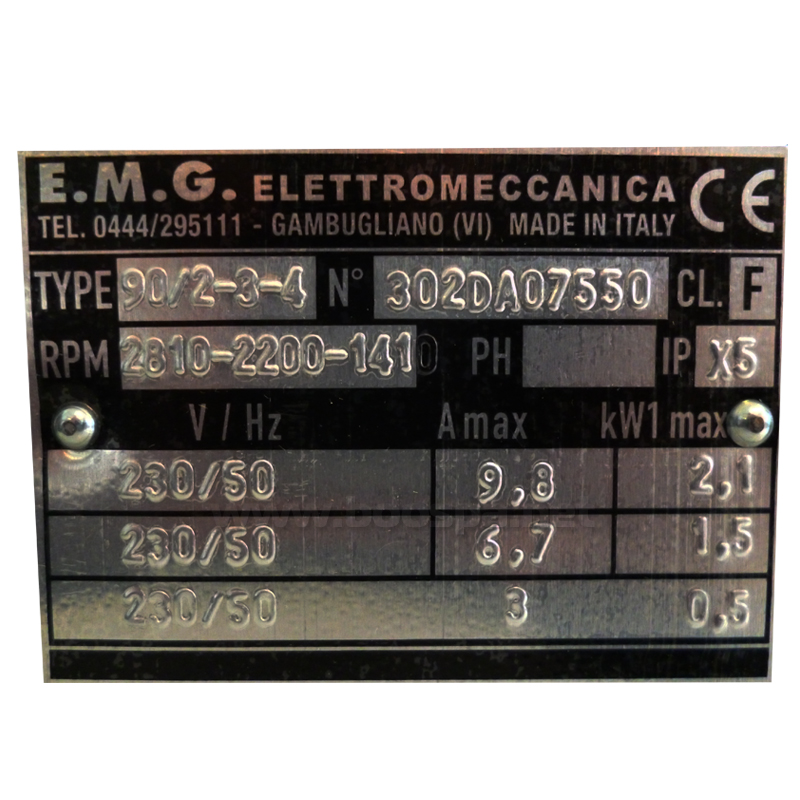

Power: 3 HP (2,1 Kw)
220-240V 50HZ
Maximum flow of 960 liters per minute

For each starting pressure of the pump, the contactor activates itself on a speed.
  • Designed for an optimal performance and flow
  • 3 changing speed by simple pressure on the starting button of the massage pumps.
  • To plug on a single-speed connection
  • Suction and backflow diameter of 2’’ (60 mm) for an accrued performance and a reduced noise.
  • Motor cooling IPX5 norm for a progressive increase in temperature
  • Thermic overheat detector to preserve and extend the motor’s lifespan
  • Equipped with a capacitor (allows the ignition/starting of the pumps)
  • Device adapted for spas and pools
First pressure ONFirst active speed, 0.5kW
Pressure Off + second pressure ONSecond active speed 1.5kW
Pressure Off + third pressure ONThird active speed 2.1kW
Pressure Off + fourth pressure ONAutomatic mode, succession of 3 speeds
Pulsated effect

Technical pictures

Performance futura3Dimension futura 3

Pipe Connection


Delivered without the 2" (60 mm internal) output connection
You can use your old pump union connections. If these connectors aren't compatible with your pipe, click on the link below : Pump union connections

Electronic Connection


Delivered without cable without plug. You can use your old cable to connect your new pump. If we can't connect it, choose your new cable in our cable range : Cables and plugs

The most famous plugs in Spa World:
prise ampprise J&J
 AMP Plug  J&J Plug



Technical documentation
