Complete UV disinfection system PP-I - New generation

Complete UV disinfection system PP-I - New generation Natural and automatic purification system. Inlcude ballast, chamber, quartz and UV bulb
206,67 £
Delivery within 15 to 45 days
  • Delivery

    Worldwide delivery

  • Delivery

    Pay in 4x free of charge with Read more

  • 100% compatible parts

    100% compatible parts

  • Warranty - 2 years

    Warranty - 2 years

Technical characteristics

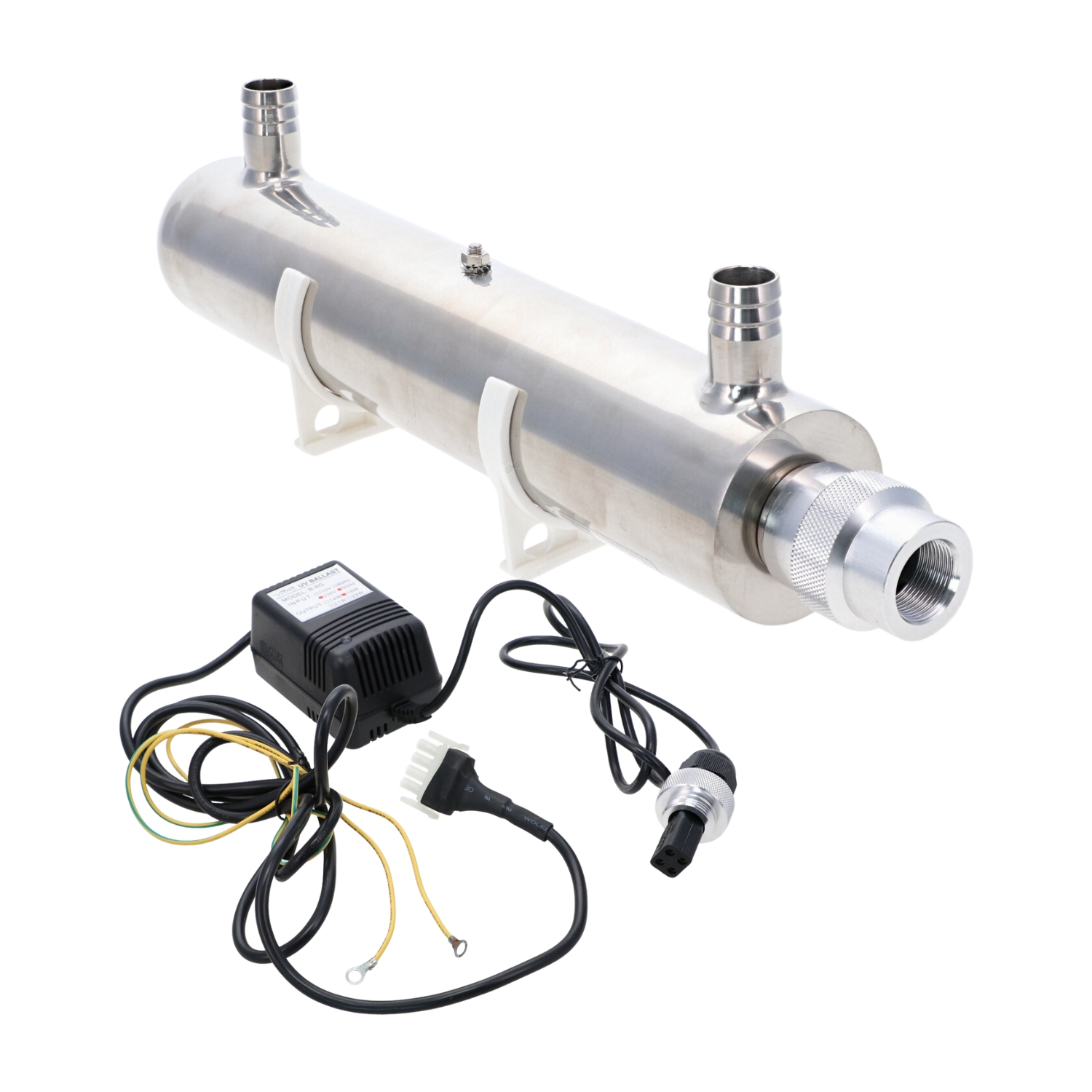

Complete UV disinfection system PP-I - New generation

Natural and automatic purification system.
Inlcude ballast, chamber, quartz and UV bulb

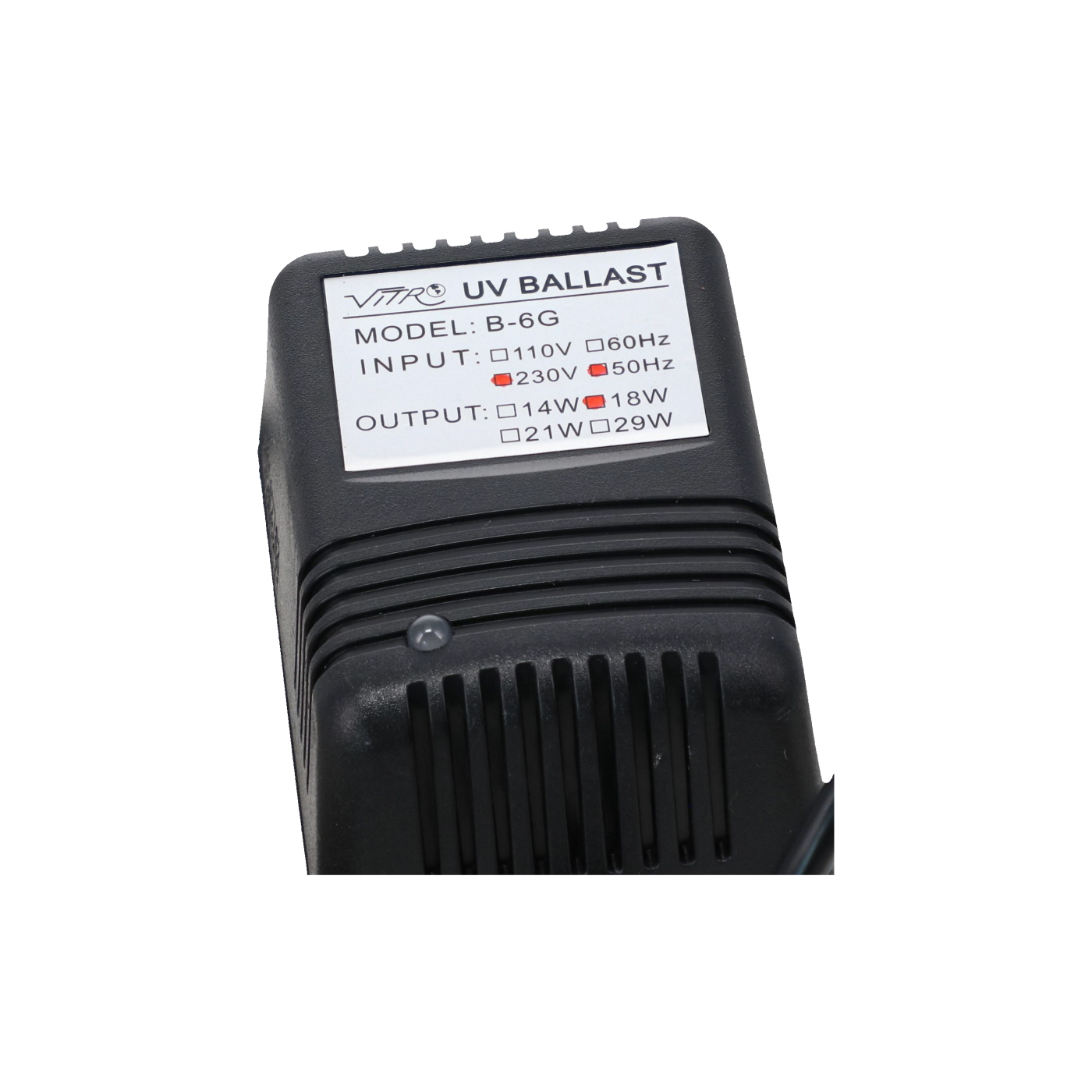

The ballast is smaller than the previous generation
Replace the old generation UV-3 regular

You can use this kit if you don't have an UV disinfection system on your spa. You have to make a By pass on your circulation system and connect the PP-I system on it.

The electric connection is AMP plug

Illustration connexion ampoule
Chamber dimensions :
  • Lenght without ballast : 345mm
  • Lenght with ballast : 420mm
  • Diameter : 64mm
  • Fitting for 3/4 pipe

Union in 1" not include in this kit

Average lifetime for the bulb : 9000 hours (1 or 2 years)
Average lifetime for the quartz sleeve : 9000 hours (2 or 3 years)

PP-I Wonder system :

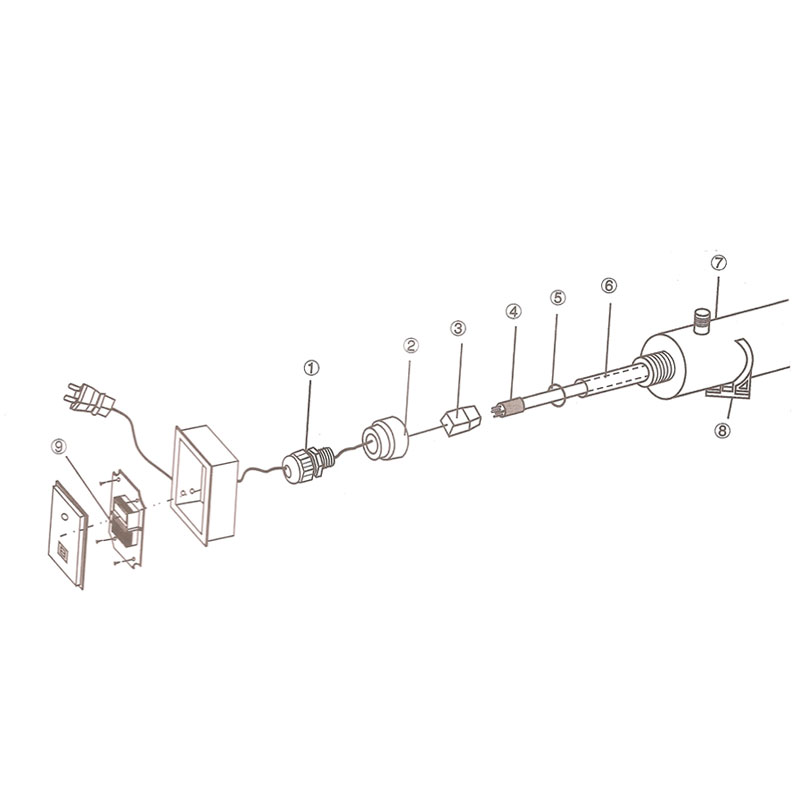

Schema Ozonateur PP-I
  • Part n°1 : PG135 Water Proof stainer
  • Part n°2 : A02 Aluminium nut
  • Part n°3 : 4P80 Lamp socket and Lead wire
  • Part n°4 : T515 Germicidal ultraviolet bulb
  • Part n°5 : 21735 Rubber Oring
  • Part n°6 : t245350 Quartz sleeve
  • Part n°7 : ST635345 Chamber
  • Part n°8 : 1002 Clip
  • Part n°7 : UV-22-anti-water-cover Ballast new generation

ModelFlow rate (l/min)QuartzInlet/OutletBulbBallast
PP-I UV-2222.6Diameter 24.5mm / Lenght : 350mm1"T515UV-22
220-240V
PP-II45.2Diameter 24.5mm / Lenght : 680mm1"T529UV-6
PP-III90.4Diameter 24.5mm / Lenght : 910mm1.5"T540UV-6

U.V lamp: it is the way ozone is produced in the upper atmosphere via the sunrays

Compatible with

UV Ozone generator - Wonder
PP series : PP-I UV-22

Many used in Wellis spas
