Massage Pump Durajet Single-Speed 2HP

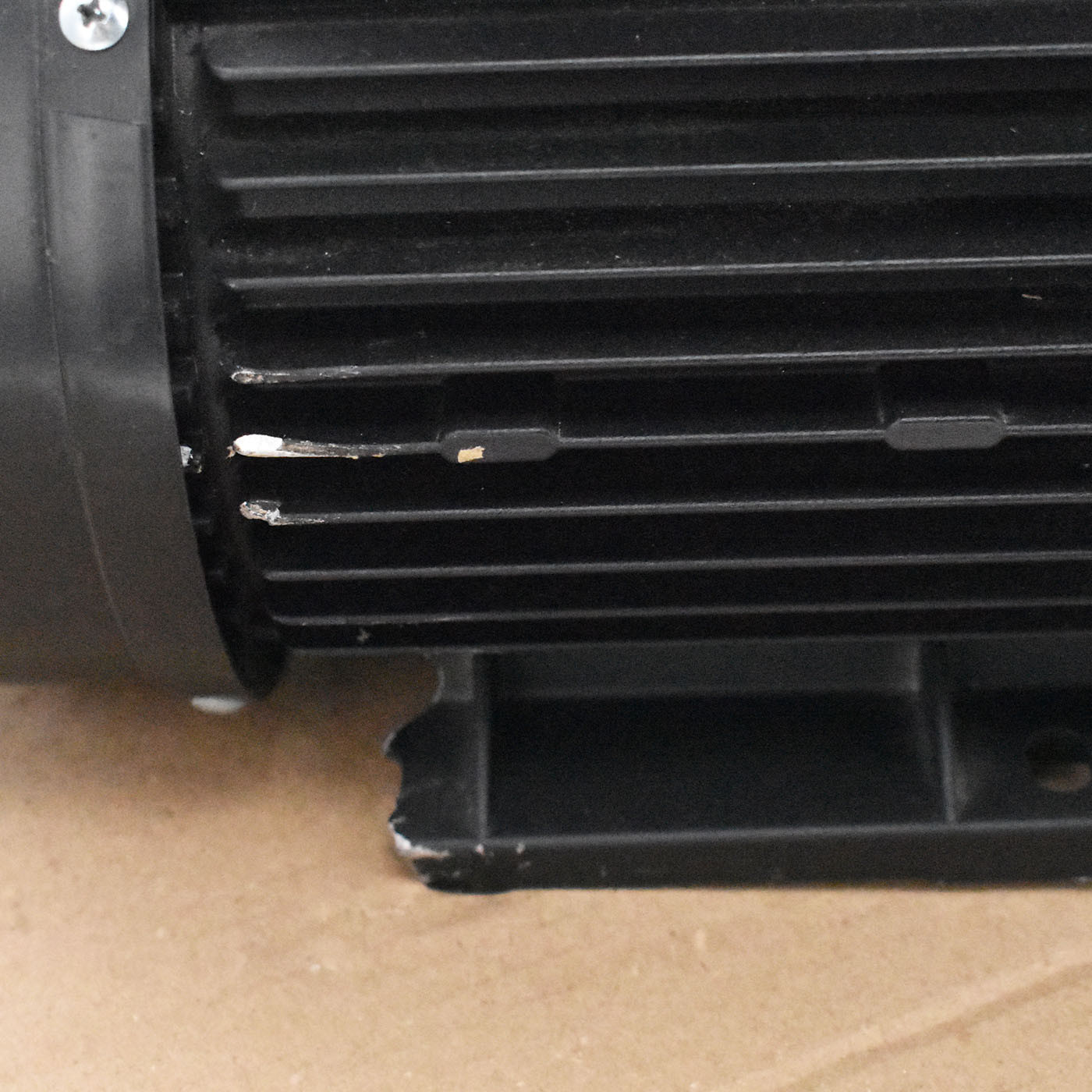

Wear marks on the fins and one of the four mounts is unusable.

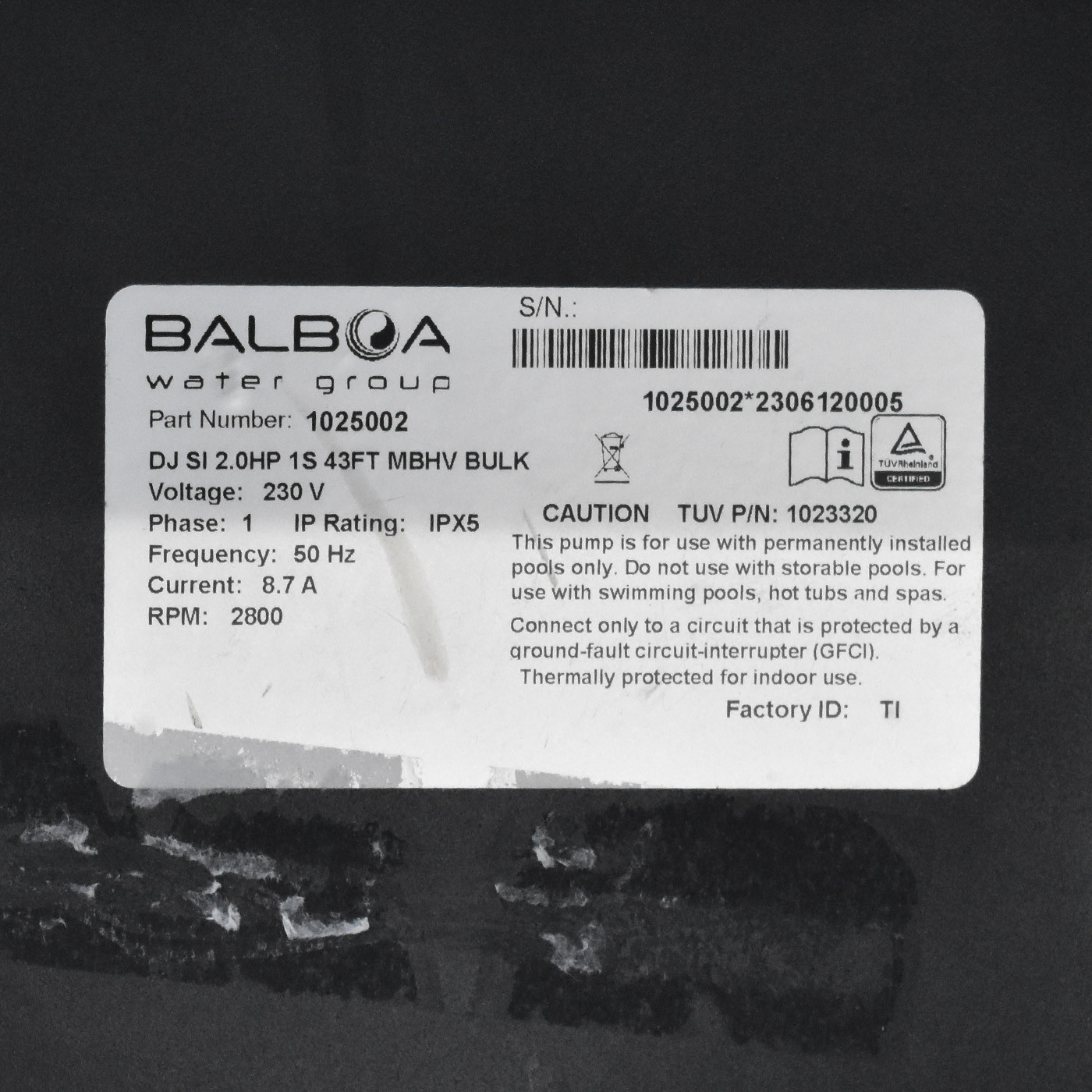

Balboa Reference: 1025002
Durajet pumps are known for their robustness and long lifespan.
Power: 2HP (1.5kW)
Voltage: 220-240V 50Hz
Threaded connection diameter for suction and discharge: 78 mm
IPX5 protection
Technical Diagrams
Models | Volt | Hz | kW | Amps | HP | Speeds |
DuraJet Single-Speed (sold here) | 230 | 50Hz | 1.5 | 8.7 | 2 | Single |
DuraJet Dual-Speed | 230 | 50Hz | 1.5/0.35 | 9/1.9 | 2 | Dual |
Pipe Connection
Delivered WITHOUT output unions for pump-to-piping connection.
You can reuse your old pipe fittings if they are still functional.
If your piping is different, check our Fittings and Union range to find the right fitting for your system.
The pump body is adjustable to fit your piping. You can have the discharge on the left or the right depending on your installation. Simply unscrew the 4 motor screws to rotate the pump body in the desired direction. Then replace the screws back into position. Electrical Connection
The pump is delivered without a connection cable. You can reuse your old cable to connect this new pump. If your plug is no longer usable, you can opt for a new plug in our Cables and Plugs for Spa section.
Here are the most commonly used plugs in the spa industry: |  |
AMP Plug | J&J Plug (the PIN position varies depending on the device) |
