AQUA-FLO

Ref : A-000000-02493

(8)

Aqua-Flo Circ-Master XP Pump (CMXP) - 1/15HP

Name: Aqua-Flo Circ-Master XP Pump (CMXP) - 1/15HP
Brand: AQUA-FLO
SKU: A-000000-02493
Price: 400 EUR
Availability: InStock
Rating: 4.38 (8 reviews)

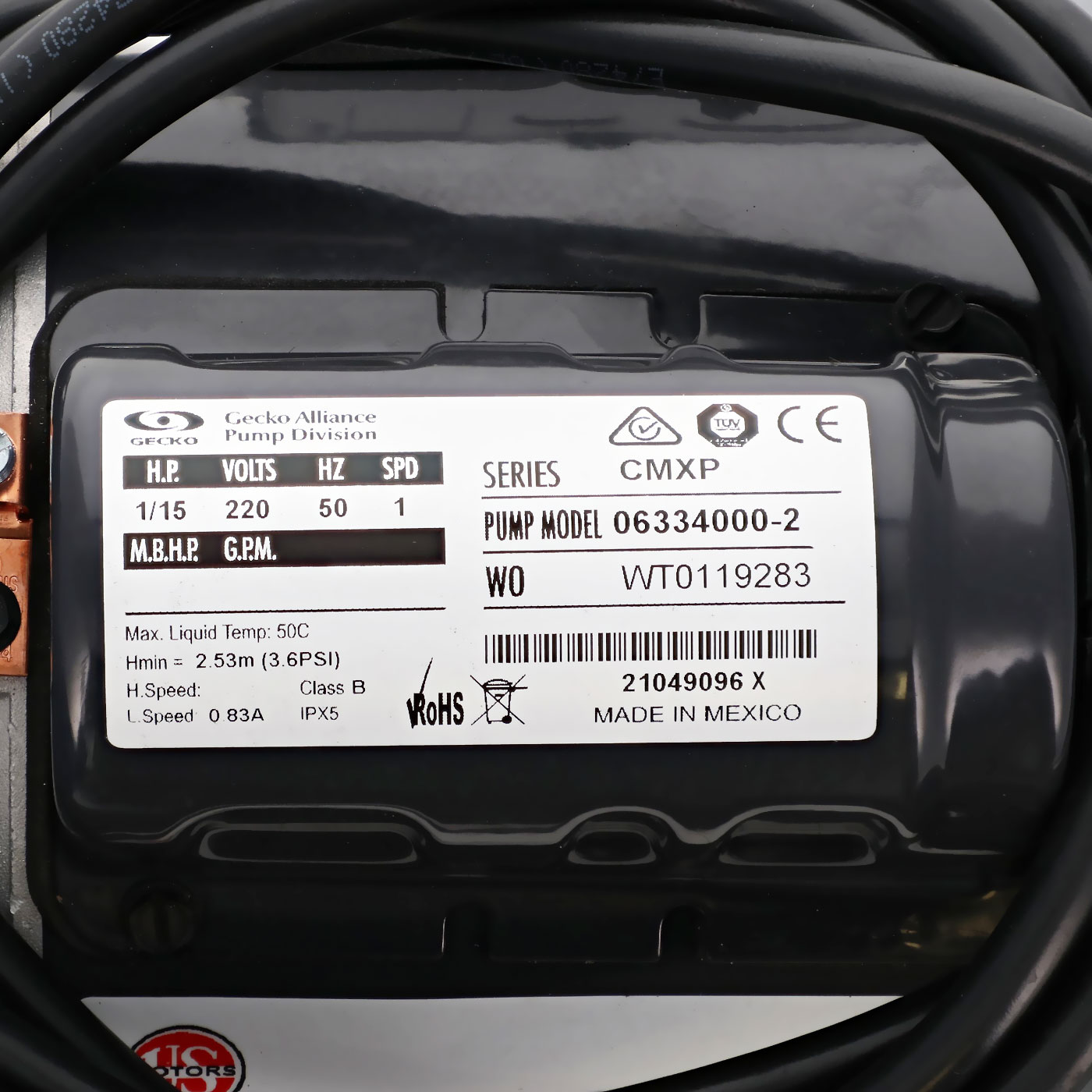

GECKO reference : 06334000-2
Sundance / Jacuzzi reference : 6500-911
Power : 1 / 15HP
220V - 50Hz - 1 speed
2" (60mm) pump inlet and outlet connections

Check compatibility with my SPA model

Pay in 4x free of charge with Paypal

Worldwide delivery

100% compatible parts
Warranty - 2 years

Technical characteristics

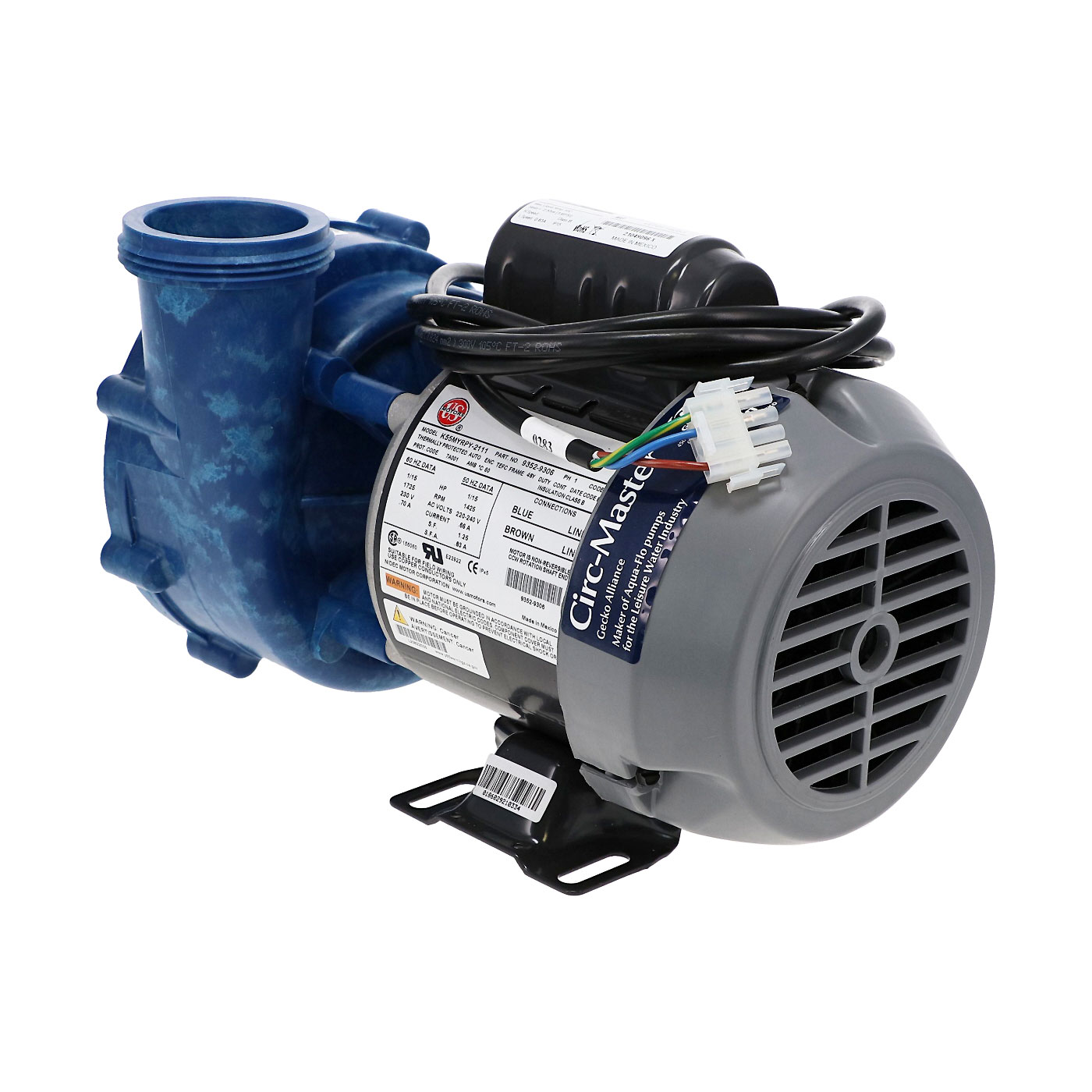

Aqua-Flo Circ-Master XP Pump (CMXP)

Aqua-Flo by Gecko's CMXP pump takes 24-hour filtration to a new level, delivering the highest LPM of any recirculation pump in the spa industry. Higher LPM allows the new Circ-Masters to operate a high-flow heating system resulting in increased efficiency and up to four times the filtration.

A smart and compact design :

24 hour operation
Sealed motor IPx5
1/15 HP - 220 V - 50 Hz
US Motors 48 FRAME engine - 1 speed
TUV and CE certified
Outer diameter suction and delivery screw pitch : 78 mm
Thermal overheating detector to preserve and increase the duration engine life
Ultra quiet operation

Dimensions and characteristics of the Gecko CMXP pump

Performance curves for CMXP and CMHP pumps

Dimensions pump circ master xp

Model	(Q) l/min	Power W	Power HP	Max. height	Length	Weight (kg)
CircMasterXP	250	140-195	1 / 15HP	210mm	323mm	6kg

GECKO reference : 06334000-2
Sundance/Jacuzzi reference : 6500-911
Wellis Spa reference : ACM0841
US Motors engine part number : 9352-9306
Engine model : K55MYRPY-2111

Pipe connection

Supplied with 2"outlet fittings (60 mm internal diameter)
You can also reuse your old pipe fittings if these are still functional.
If your piping differs, access our range Fittings and Union in order to find the connection matching your piping

The pump body is adjustable to adapt to your piping. You can then have a discharge to the left or to the right depending on your installation. To do this, simply unscrew the 4 motor screws to turn your pump body clockwise wish. Then replace the screws in place.

Electrical connection

Pump delivered with a cord + AMP connector
Cable length : approx. 2.30 m

You can keep your old cable in order to connect this new one pump. If your outlet is no longer usable, you can opt for new plug in our section Cables and plugs for Spa.

Technical documentation

Download data sheet

This product is compatible with several spa models

Here is a non-exhaustive list of spas with which this article is compatible. If you have any doubt, do not hesitate to contact us. Article made of high quality and solid materials. This model is guaranteed 1 and can replace the original part on the following spas:

Top Compatible models

HydroSpas
Spaform
Hot Tubs
Aegan
Down East
Master Spa
Leisurite
Sunrise Spa
Sundance Spa
